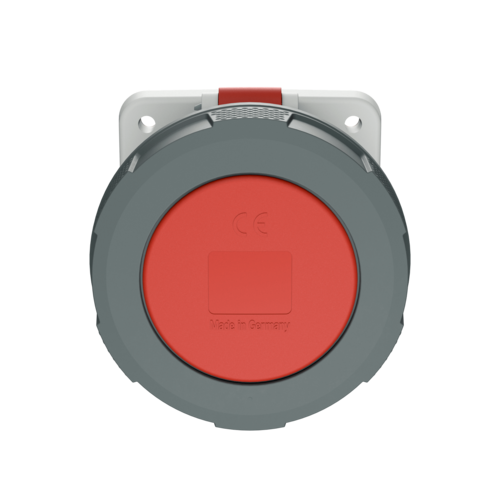

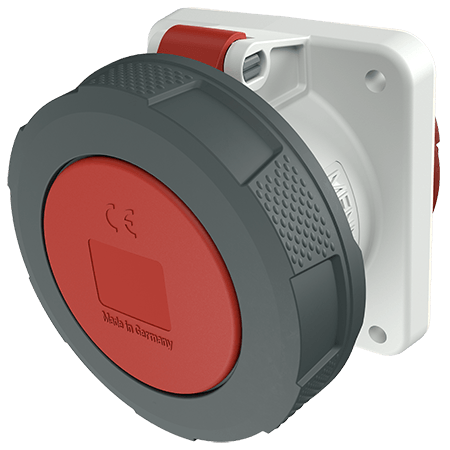

MENNEKES Panel mounted receptacle 1128A
MENNEKES Panel mounted receptacle 1128A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 1128A

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • straight
  • receptacles with pilot contact: part no. + index P
  • Part no.1128A
  • EAN4015394007579
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted receptacle 1128A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 664 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1128A

Product infoPanel mounted receptacle 1128A PDF, 180 KB
Manufacturer‘s declarationPanel mounted receptacle 1128A ZIP, 220 KB
CAD data STPPanel mounted receptacle 1128A ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1128A ZIP, 3 MB
Dimensional drawing portraitPanel mounted receptacle 1128A PNG, 94 KB
Dimensional drawing landscape formatPanel mounted receptacle 1128A PNG, 94 KB

Videos

Panel mounted receptacle 1128A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 1128A

REACh
RoHS

Frequently asked questions about the product

What is the difference between articles 1128A and 1128P?

Articles 1128A and 1128P (Panel mounted socket with screw contact) are almost identical products. However, article 1128P has a pilot contact that can be used for additional signalling/controlling.
