Show all Low voltages / Show all Panel mounted receptacle

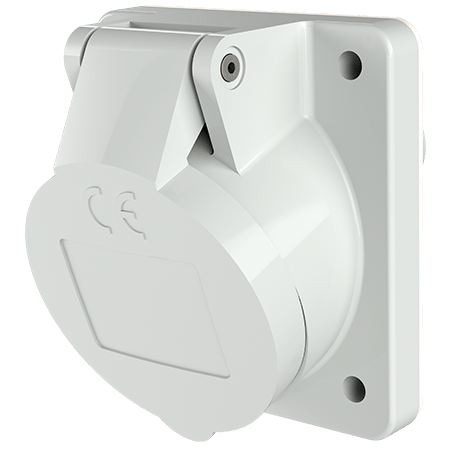

MENNEKES Panel mounted receptacle 1272

Panel mounted receptacle 1272

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1272
  • EAN4015394009085
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1272

Ampere 16 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 68x62 mm
Fixing hole 53x47 mm
Inclination 20 °
Weight 143 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1272

Product infoPanel mounted receptacle 1272 PDF, 192 KB
Dimensional drawing portraitPanel mounted receptacle 1272 PNG, 90 KB
Dimensional drawing landscape formatPanel mounted receptacle 1272 PNG, 90 KB

Directives

Panel mounted receptacle 1272

REACh
RoHS
