Show all Panel mounted receptacles / Show all Panel mounted receptacle

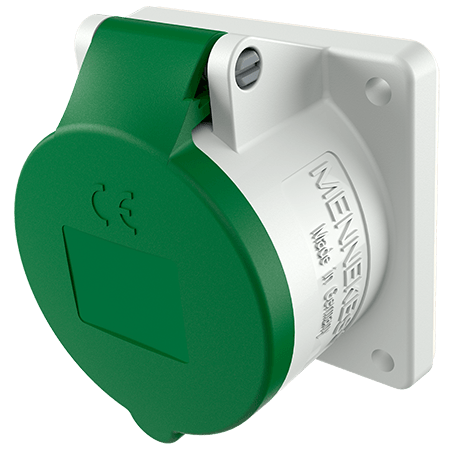

MENNEKES Panel mounted receptacle 1401

Panel mounted receptacle 1401

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.1401
  • EAN4015394010364
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1401

Ampere 32 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 212 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1401

Product infoPanel mounted receptacle 1401 PDF, 161 KB
Dimensional drawing portraitPanel mounted receptacle 1401 PNG, 45 KB
Dimensional drawing landscape formatPanel mounted receptacle 1401 PNG, 45 KB

Directives

Panel mounted receptacle 1401

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 1401

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more
MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
