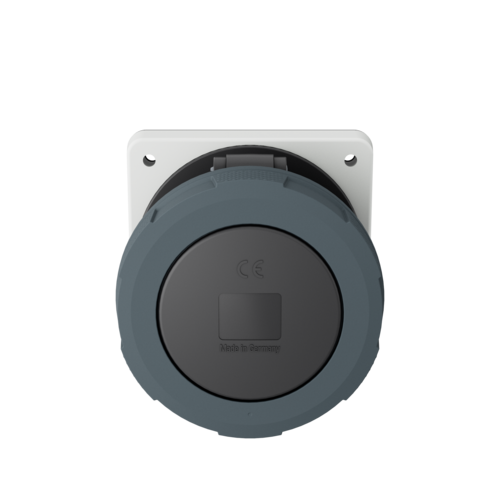

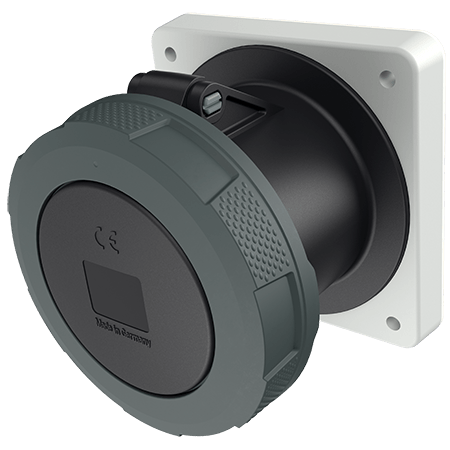

MENNEKES Panel mounted receptacle 1458
MENNEKES Panel mounted receptacle 1458 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 1458

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • straight
  • receptacles with pilot contact: part no. + index P
  • Part no.1458
  • EAN4015394011101
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted receptacle 1458

Ampere 125 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 130x130 mm
Fixing hole 104x104 mm
Weight 1135 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1458

Product infoPanel mounted receptacle 1458 PDF, 261 KB
Manufacturer‘s declarationPanel mounted receptacle 1458 PDF, 28 KB
Dimensional drawing portraitPanel mounted receptacle 1458 PNG, 193 KB
Dimensional drawing landscape formatPanel mounted receptacle 1458 PNG, 198 KB

Videos

Panel mounted receptacle 1458

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 1458

REACh
RoHS
