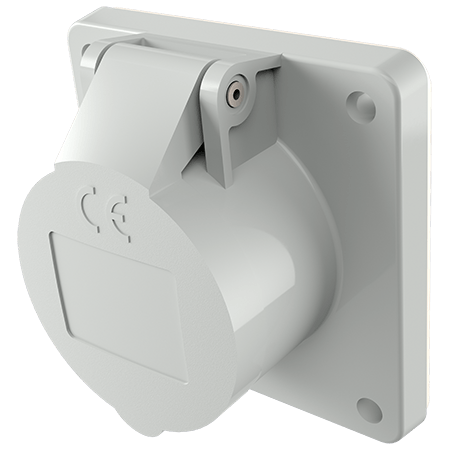

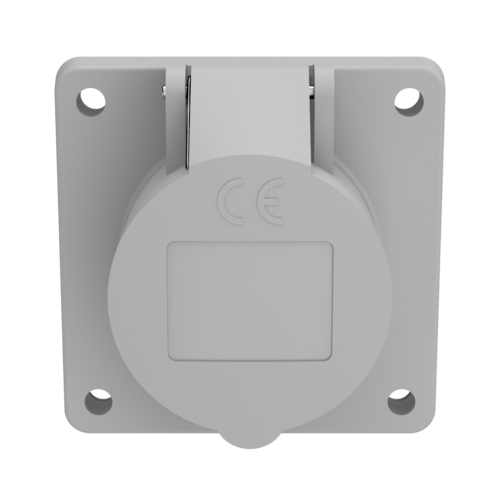

Panel mounted receptacle 1661

Name: Panel mounted receptacle
Brand: MENNEKES
SKU: 1661

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
straight

also suitable for cable ducts and flush mounted installation boxes

Part no.1661
EAN4015394012511
Std. Pack. 10

Technical specifications

Panel mounted receptacle 1661

Ampere	16 A
Poles	3 p
Voltage	40-50 V
Clock position	12 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	147 g
Certifications	EAC

Datasheets & Downloads

Panel mounted receptacle 1661

Product infoPanel mounted receptacle 1661 PDF, 187 KB

Dimensional drawing portraitPanel mounted receptacle 1661 PNG, 86 KB

Dimensional drawing landscape formatPanel mounted receptacle 1661 PNG, 86 KB

Directives

Panel mounted receptacle 1661

REACh

RoHS

Appropriate accessories

Panel mounted receptacle 1661

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p
