Show all Low voltages / Show all Panel mounted receptacle

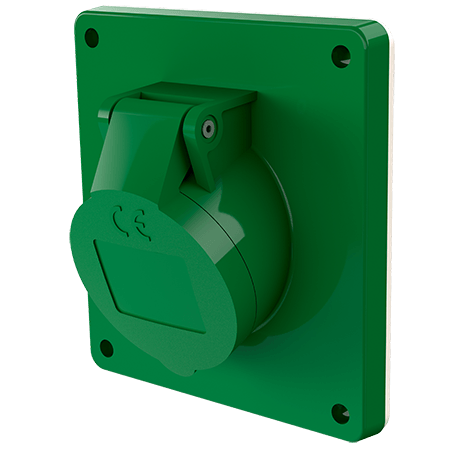

MENNEKES Panel mounted receptacle 2837

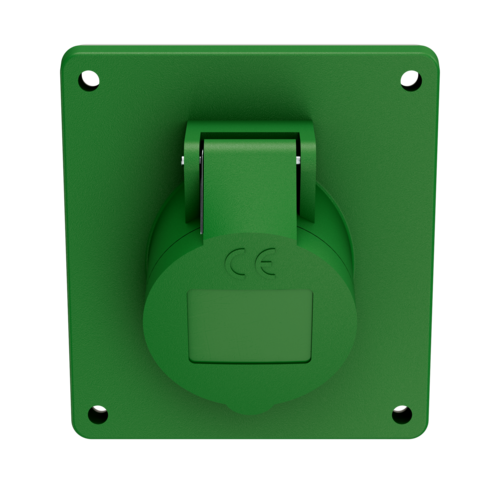

MENNEKES Panel mounted receptacle 2837 images3d

Panel mounted receptacle 2837

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2837
  • EAN4015394016670
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2837

Ampere 32 A
Poles 3 p
Voltage 20-25, 40-50 V
Clock position 4 h
Hertz 100-200 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 170 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 2837

Product infoPanel mounted receptacle 2837 PDF, 141 KB
CAD data STPPanel mounted receptacle 2837 ZIP, 154 KB
CAD data 3D DWGPanel mounted receptacle 2837 ZIP, 535 KB
Dimensional drawing portraitPanel mounted receptacle 2837 PNG, 71 KB
Dimensional drawing landscape formatPanel mounted receptacle 2837 PNG, 71 KB

Directives

Panel mounted receptacle 2837

REACh
RoHS
