Show all Panel mounted receptacles
/
Show all Panel mounted receptacle
/
Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

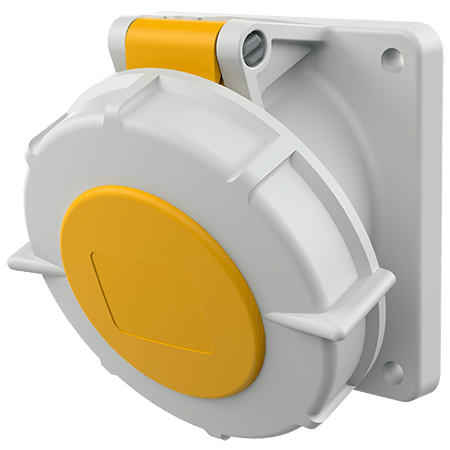

Panel mounted receptacle 3197
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
screw terminals
standard flange dimensions
20° inclination
receptacles optional fitted with auxiliary contact
Part no.
3197
EAN
4015394203025
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 3197
Ampere
32 A
Poles
3 p
Voltage
110 V
Clock position
4 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
20 °
Weight
280 g
Certifications
EAC
Datasheets & Downloads
Panel mounted receptacle 3197
Product info
Panel mounted receptacle 3197
PDF, 184 KB
Dimensional drawing portrait
Panel mounted receptacle 3197
PNG, 100 KB
Dimensional drawing landscape format
Panel mounted receptacle 3197
PNG, 100 KB
Directives
Panel mounted receptacle 3197
REACh
RoHS
