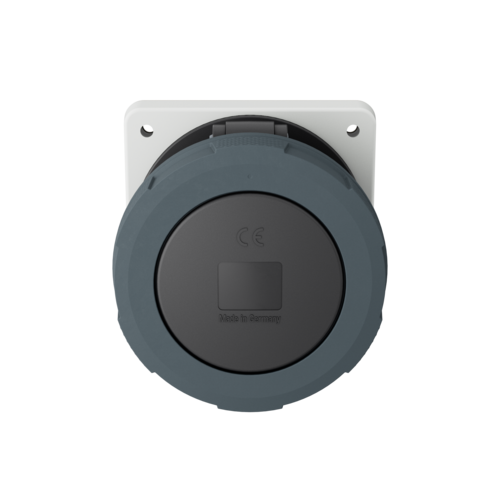

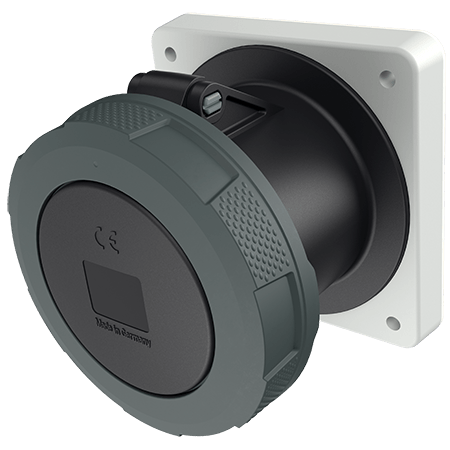

Panel mounted receptacle 3283
Ampere
63 A
125 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
X-CONTACT
straight
receptacles with pilot contact: part no. + index P
Part no.
3283
EAN
4015394018513
Std. Pack.
5
Add to shopping basket
Technical specifications
Panel mounted receptacle 3283
Ampere
125 A
Poles
5 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
X-CONTACT
Protection type
IP67
Flange
130x130 mm
Fixing hole
104x104 mm
Weight
1256 g
Certifications
VDE
Datasheets & Downloads
Panel mounted receptacle 3283
Product info
Panel mounted receptacle 3283
PDF, 261 KB
Manufacturer‘s declaration
Panel mounted receptacle 3283
PDF, 37 KB
Dimensional drawing portrait
Panel mounted receptacle 3283
PNG, 193 KB
Dimensional drawing landscape format
Panel mounted receptacle 3283
PNG, 198 KB
Videos
Panel mounted receptacle 3283
Please
accept marketing-cookies
to watch this video.
Directives
Panel mounted receptacle 3283
REACh
RoHS
