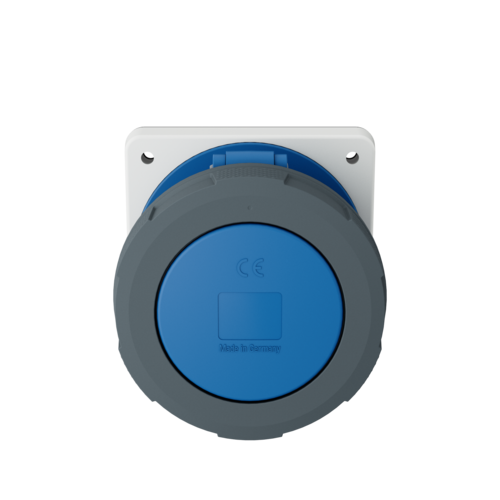

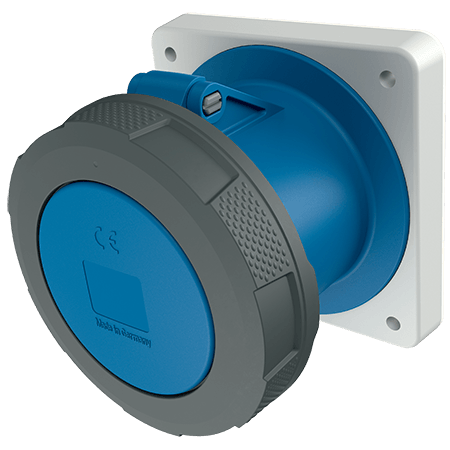

Panel mounted receptacle 3380
Ampere
63 A
125 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
X-CONTACT
straight
receptacles with pilot contact: part no. + index P
Part no.
3380
EAN
4015394018834
Std. Pack.
5
Add to shopping basket
Technical specifications
Panel mounted receptacle 3380
Ampere
125 A
Poles
3 p
Voltage
230 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
X-CONTACT
Protection type
IP67
Flange
130x130 mm
Fixing hole
104x104 mm
Weight
1001 g
Certifications
VDE
Datasheets & Downloads
Panel mounted receptacle 3380
Product info
Panel mounted receptacle 3380
PDF, 171 KB
Manufacturer‘s declaration
Panel mounted receptacle 3380
PDF, 54 KB
CAD data STP
Panel mounted receptacle 3380
ZIP, 1 MB
CAD data 3D DWG
Panel mounted receptacle 3380
ZIP, 3 MB
Dimensional drawing portrait
Panel mounted receptacle 3380
PNG, 94 KB
Dimensional drawing landscape format
Panel mounted receptacle 3380
PNG, 94 KB
Videos
Panel mounted receptacle 3380
Please
accept marketing-cookies
to watch this video.
Directives
Panel mounted receptacle 3380
REACh
RoHS
