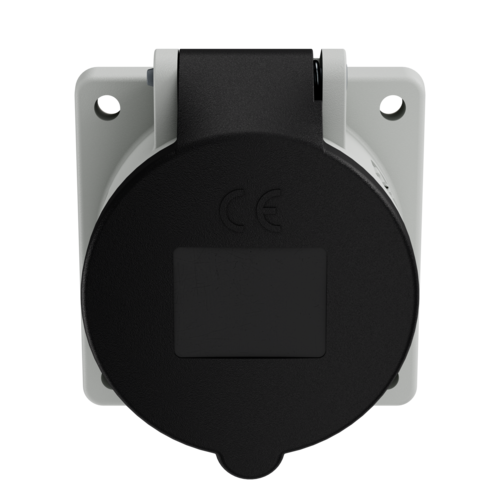

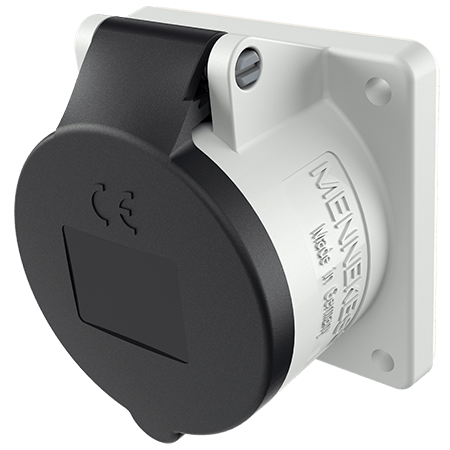

Panel mounted receptacle 3450

Name: Panel mounted receptacle
Brand: MENNEKES
SKU: 3450

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

straight

Part no.3450
EAN4015394097686
Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 3450

Ampere	32 A
Poles	5 p
Voltage	600-690 V
Clock position	5 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	227 g
Certifications	VDE

Datasheets & Downloads

Panel mounted receptacle 3450

Product infoPanel mounted receptacle 3450 PDF, 365 KB

Dimensional drawing portraitPanel mounted receptacle 3450 PNG, 262 KB

Dimensional drawing landscape formatPanel mounted receptacle 3450 PNG, 278 KB

Directives

Panel mounted receptacle 3450

REACh

RoHS

Appropriate accessories

Panel mounted receptacle 3450

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136
