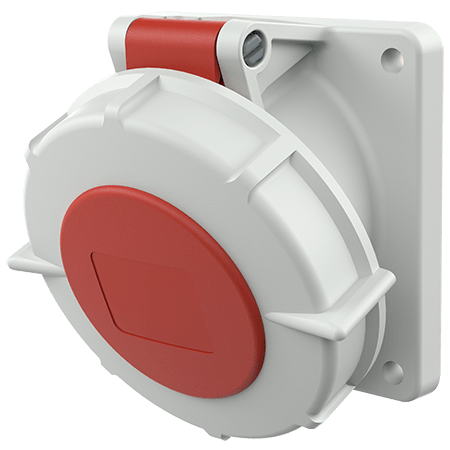

Panel mounted receptacle 3524

Name: Panel mounted receptacle
Brand: MENNEKES
SKU: 3524

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
standard flange dimensions

20° inclination
receptacles optional fitted with auxiliary contact

Part no.3524
EAN4015394203063
Std. Pack. 10

Technical specifications

Panel mounted receptacle 3524

Ampere	32 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Flange	85x85 mm
Fixing hole	70x70 mm
Inclination	20 °
Weight	326 g
Certifications	VDE

Datasheets & Downloads

Panel mounted receptacle 3524

Product infoPanel mounted receptacle 3524 PDF, 186 KB

CAD data STPPanel mounted receptacle 3524 ZIP, 1 MB

CAD data 3D DWGPanel mounted receptacle 3524 ZIP, 3 MB

Dimensional drawing portraitPanel mounted receptacle 3524 PNG, 100 KB

Dimensional drawing landscape formatPanel mounted receptacle 3524 PNG, 100 KB

Directives

Panel mounted receptacle 3524

REACh

RoHS

Appropriate accessories

Panel mounted receptacle 3524

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
