Show all 160 A to 600 A / Show all Panel mounted receptacle

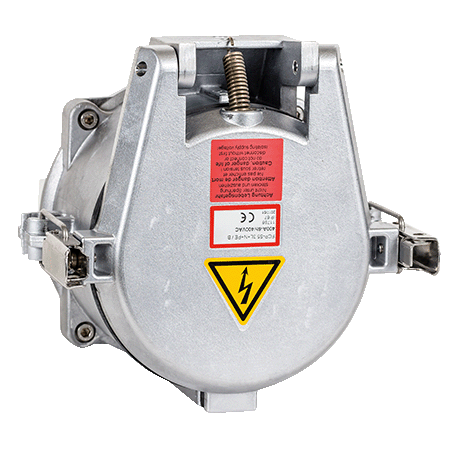

MENNEKES Panel mounted receptacle 75041

Panel mounted receptacle 75041

Ampere 250 A 400 A
Poles
Voltage
Clock position
  • aluminum enclosure
  • Screw terminals
  • seawater resistant products are available on request
  • Part no.75041
  • EAN4015394055112
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 75041

Ampere 250 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 6525 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 75041

Product infoPanel mounted receptacle 75041 PDF, 113 KB
CAD data STPPanel mounted receptacle 75041 ZIP, 3 MB
CAD data 3D DWGPanel mounted receptacle 75041 ZIP, 3 MB
Dimensional drawing portraitPanel mounted receptacle 75041 PNG, 24 KB
Dimensional drawing landscape formatPanel mounted receptacle 75041 PNG, 25 KB

Directives

Panel mounted receptacle 75041

REACh
RoHS
