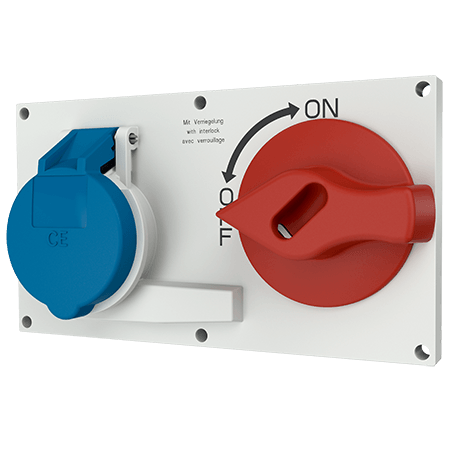

MENNEKES Panel mounted receptacle 7512

Panel mounted receptacle 7512

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7512
  • EAN4015394227960
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 7512

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 690 g
Certifications CQC

Datasheets & Downloads

Panel mounted receptacle 7512

Product infoPanel mounted receptacle 7512 PDF, 127 KB
CAD data STPPanel mounted receptacle 7512 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 7512 ZIP, 1 MB
Dimensional drawing portraitPanel mounted receptacle 7512 PNG, 54 KB
Dimensional drawing landscape formatPanel mounted receptacle 7512 PNG, 54 KB

Directives

Panel mounted receptacle 7512

REACh
RoHS

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
