Show all Panel mounted receptacles switched and interlocked / Show all Panel mounted receptacle

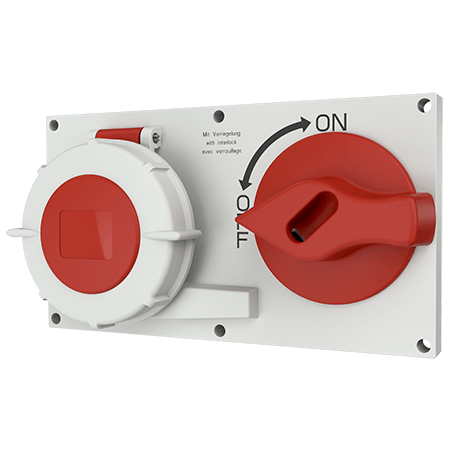

MENNEKES Panel mounted receptacle 7534

Panel mounted receptacle 7534

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7534
  • EAN4015394228189
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 7534

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 760 g
Certifications CQC

Datasheets & Downloads

Panel mounted receptacle 7534

Product infoPanel mounted receptacle 7534 PDF, 128 KB
Manufacturer‘s declarationPanel mounted receptacle 7534 PDF, 63 KB
Dimensional drawing portraitPanel mounted receptacle 7534 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted receptacle 7534 PNG, 53 KB

Directives

Panel mounted receptacle 7534

REACh
RoHS

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
