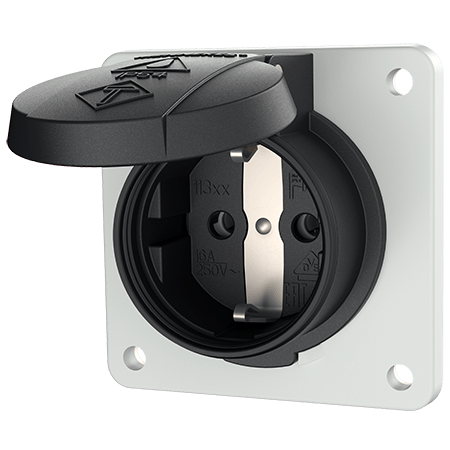

MENNEKES Panel mounted receptacle SCHUKO® 11312F

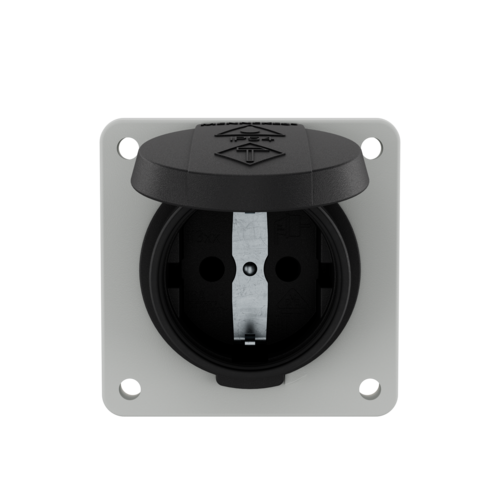

MENNEKES Panel mounted receptacle SCHUKO® 11312F images3d

Panel mounted receptacle SCHUKO® 11312F

Ampere 16 A
Poles
Voltage
  • for portable use
  • with front gasket
  • with hinged lid
  • for easy installation in a cable duct or an enclosure
  • 3 plug-in terminals as connecting terminals 1.5 – 2.5 mm²
  • Part no.11312F
  • EAN4015394259268
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle SCHUKO® 11312F

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 71 g

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 11312F

Product infoPanel mounted receptacle SCHUKO® 11312F PDF, 153 KB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 11312F PNG, 26 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 11312F PNG, 43 KB

Directives

Panel mounted receptacle SCHUKO® 11312F

REACh
RoHS

Appropriate accessories

Panel mounted receptacle SCHUKO® 11312F

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

more
MENNEKES Fixing frame 19267000

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted receptacles

more
