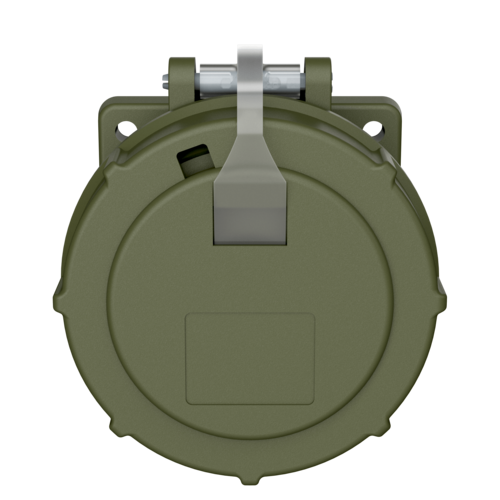

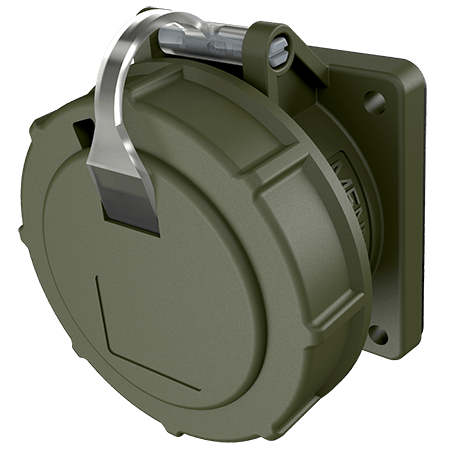

MENNEKES Panel mounted receptacle TM 20458
MENNEKES Panel mounted receptacle TM 20458 images3d

Panel mounted receptacle TM 20458

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.20458
  • EAN4015394038825
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle TM 20458

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 236 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle TM 20458

Product infoPanel mounted receptacle TM 20458 PDF, 204 KB
Manufacturer‘s declarationPanel mounted receptacle TM 20458 PDF, 37 KB
CAD data STPPanel mounted receptacle TM 20458 ZIP, 986 KB
CAD data 3D DWGPanel mounted receptacle TM 20458 ZIP, 2 MB
Dimensional drawing portraitPanel mounted receptacle TM 20458 PNG, 102 KB
Dimensional drawing landscape formatPanel mounted receptacle TM 20458 PNG, 102 KB

Directives

Panel mounted receptacle TM 20458

REACh
RoHS
