MENNEKES Phase inverter plug AM-TOP 3339
MENNEKES Phase inverter plug AM-TOP 3339 images3d

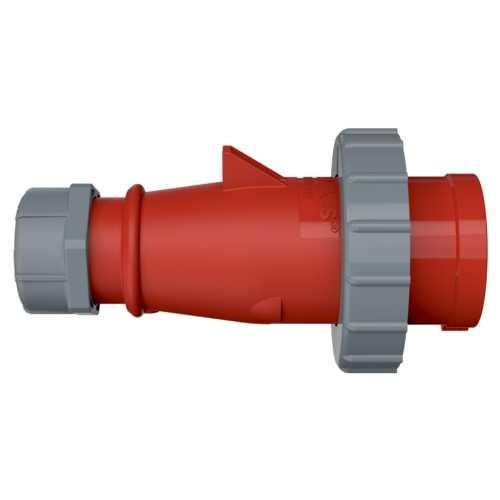

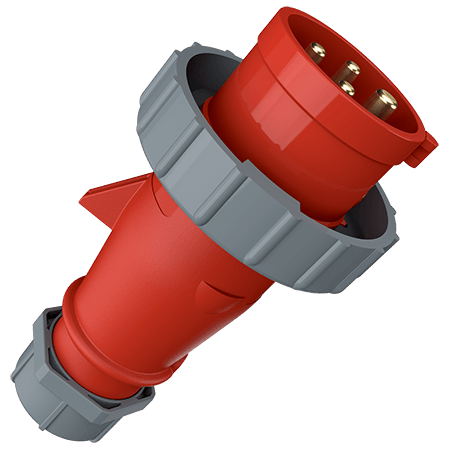

Phase inverter plug AM-TOP 3339

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3339
  • EAN4015394154549
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Phase inverter plug AM-TOP 3339

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 178 g
Certifications VDE
CQC

Directives

Phase inverter plug AM-TOP 3339

Appropriate accessories

Phase inverter plug AM-TOP 3339

MENNEKES Protective cover 40778

Protective cover

Part no. 40778

for watertight plugs, wall mounted and panel mounted inlets 16 A, 4 p

Frequently asked questions about the product

What do I use a phase inverter product for?

If a three-phase motor runs in the incorrect direction, our phase inverter products solve the problem quickly and safely. Use a screwdriver to release the lock and turn the insulating section with the two phase pins - the motor will now run in the opposite direction. More information

To the questions and answers
