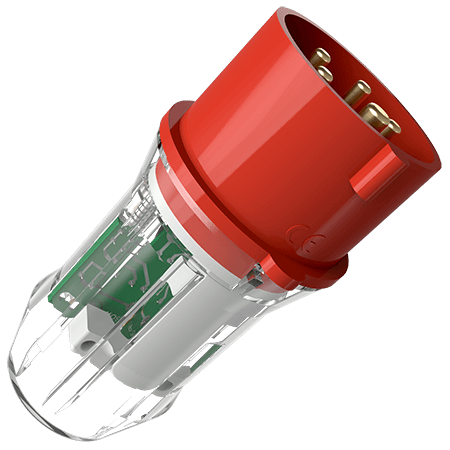

Phase sequence test plug 1414
Voltage
Clock position
- to VDE 0413, part 7, DIN-EN 61557-7
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Frequently asked questions about the product
What is a rotating field control test plug?

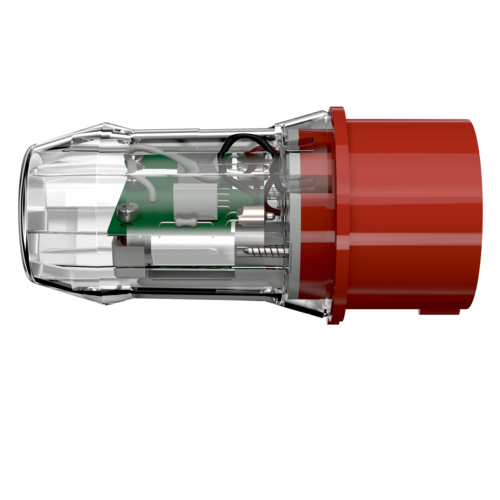

Three-phase sockets must be connected in such a way that there is a clockwise rotating field. The rotating field control test plug differs from normal plugs due to its transparent enclosure. By means of two control lamps inside the transparent enclosure, this plug indicates whether the field is rotating in a clockwise or anticlockwise direction, or if a phase is missing. In this way, the direction of the rotating field can be checked safely. If the rotating field is correct, the green lamp lights up; if the rotating field is incorrect, the red lamp lights up and if a phase is missing, both lamps light up. You can find our test plug here. More information can be found on page 34 of our Industrial plugs and sockets catalog.
