MENNEKES

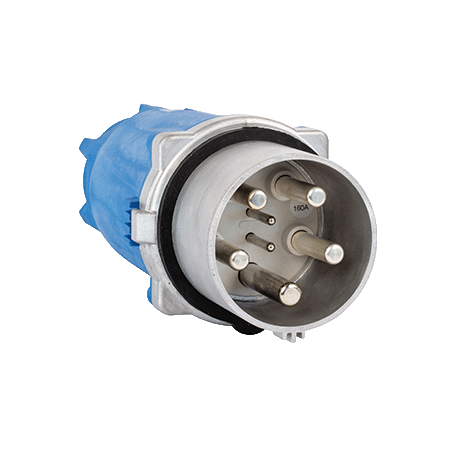

MENNEKES Plug 75056

Plug 75056

Ampere 160 A
Poles
Voltage
Clock position
  • Plastic enclosure, aluminium front part
  • Screw terminals
  • with cable gland
  • seawater resistant products are available on request
  • if required, pilot cables can be introduced separately into plugs/ enclosures, please add „PK“ to the part number
  • Part no.75056
  • EAN4015394002222
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug 75056

Ampere 160 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 2700 g
Certifications EAC

Directives

Plug 75056
