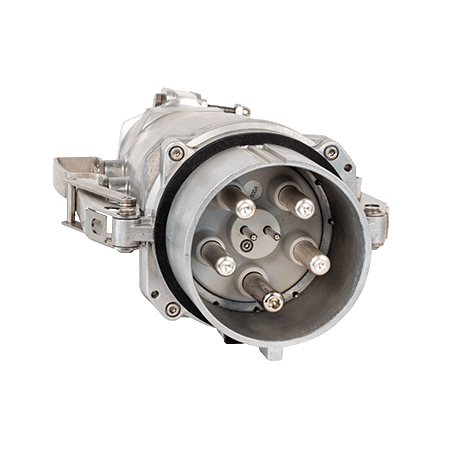

MENNEKES Plug 75330

Plug 75330

Ampere 600 A
Poles
Voltage
Clock position
  • aluminum enclosure
  • Screw terminals
  • with cable gland
  • seawater resistant products are available on request
  • if required, pilot cables can be introduced separately into plugs/ enclosures, please add „PK“ to the part number
  • Part no.75330
  • EAN4015394003137
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug 75330

Ampere 600 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 8000 g

Directives

Plug 75330
