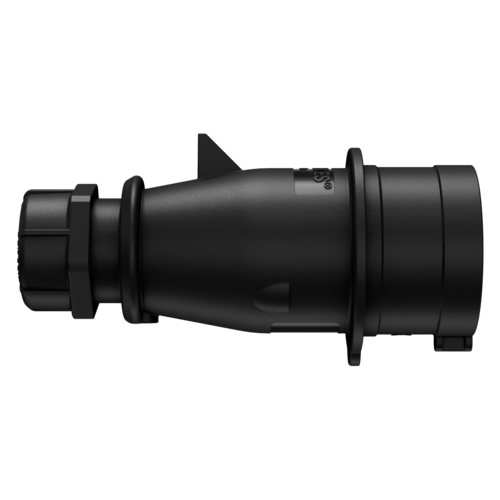

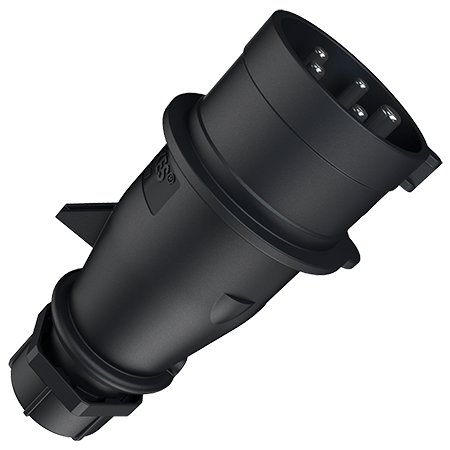

MENNEKES Plug AM-TOP 21421ZA
MENNEKES Plug AM-TOP 21421ZA images3d

Plug AM-TOP 21421ZA

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21421ZA
  • EAN4015394206705
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 21421ZA

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP44
Weight 175 g
Certifications EAC

Datasheets & Downloads

Plug AM-TOP 21421ZA

Product infoPlug AM-TOP 21421ZA PDF, 161 KB
Manufacturer‘s declarationPlug AM-TOP 21421ZA ZIP, 228 KB
CAD data STPPlug AM-TOP 21421ZA ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP 21421ZA ZIP, 834 KB
Mounting instructionsPlug AM-TOP 21421ZA PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 21421ZA PNG, 75 KB
Dimensional drawing landscape formatPlug AM-TOP 21421ZA PNG, 75 KB

Directives

Plug AM-TOP 21421ZA

REACh
RoHS
