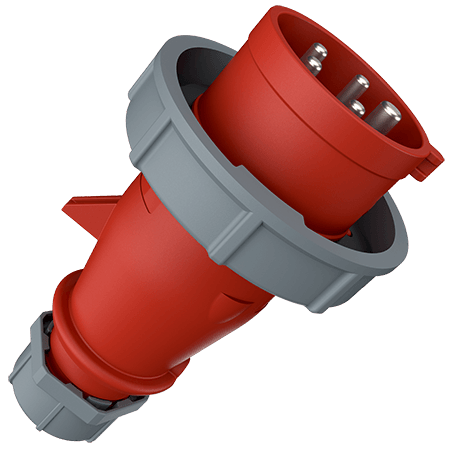

MENNEKES Plug AM-TOP 21363

Plug AM-TOP 21363

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21363
  • EAN4015394040415
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 21363

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 331 g
Certifications VDE

Directives

Plug AM-TOP 21363

Appropriate accessories

Plug AM-TOP 21363

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets 32 A, 5 p + 7 p

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here

To the questions and answers
