Show all Standard plugs / Show all Plug AM-TOP

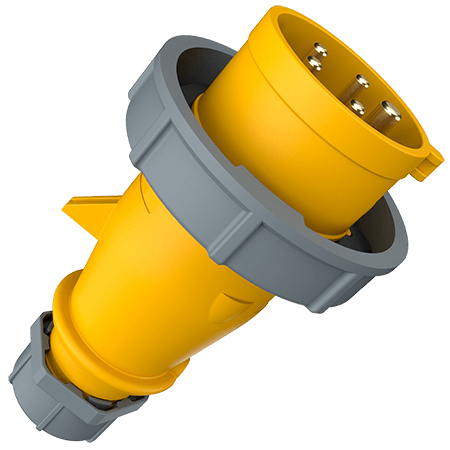

MENNEKES Plug AM-TOP 298

Plug AM-TOP 298

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.298
  • EAN4015394002116
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP 298

Ampere 32 A
Poles 5 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 329 g
Certifications EAC

Datasheets & Downloads

Plug AM-TOP 298

Product infoPlug AM-TOP 298 PDF, 155 KB
Manufacturer‘s declarationPlug AM-TOP 298 PDF, 37 KB
Mounting instructionsPlug AM-TOP 298 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP 298 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP 298 PNG, 91 KB

Directives

Plug AM-TOP 298

REACh
RoHS

Appropriate accessories

Plug AM-TOP 298

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets 32 A, 5 p + 7 p
