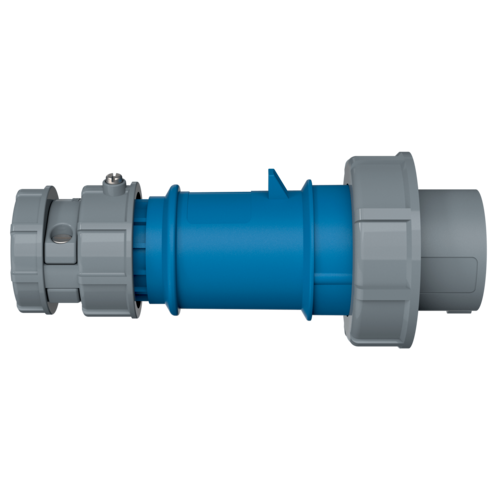

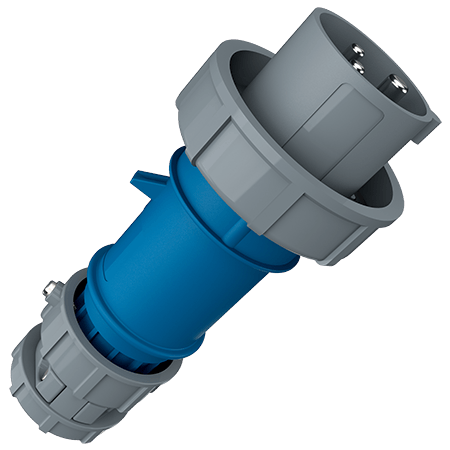

MENNEKES Plug PowerTOP 3796
MENNEKES Plug PowerTOP 3796 images3d

Plug PowerTOP 3796

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • Part no.3796
  • EAN4015394099253
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP 3796

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 191 g
Certifications VDE
CQC

Directives

Plug PowerTOP 3796

Appropriate accessories

Plug PowerTOP 3796

MENNEKES Protective cover 40784

Protective cover

Part no. 40784

for watertight plugs, wall mounted and panel mounted inlets 16 A, 3 p

MENNEKES Hanging clip 15453000

Hanging clip

Part no. 15453000

for PowerTOP plugs and connectors

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
