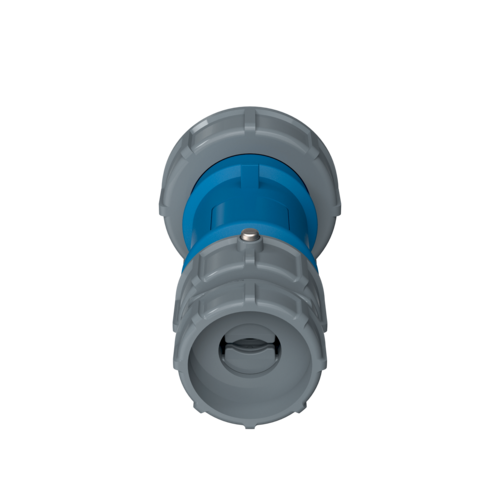

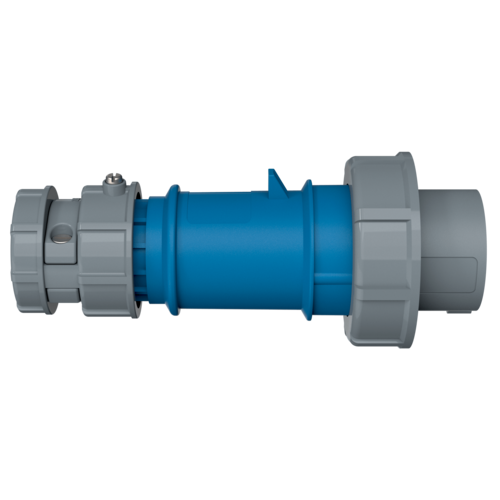

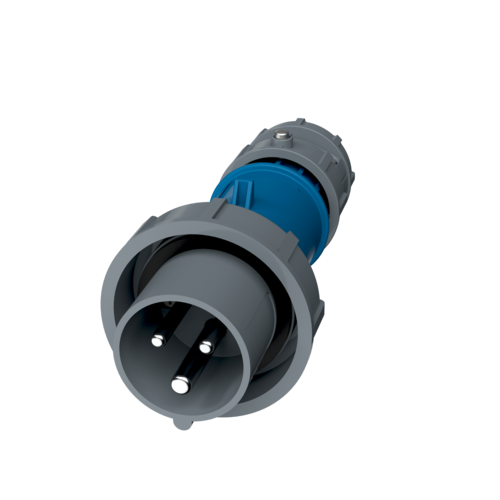

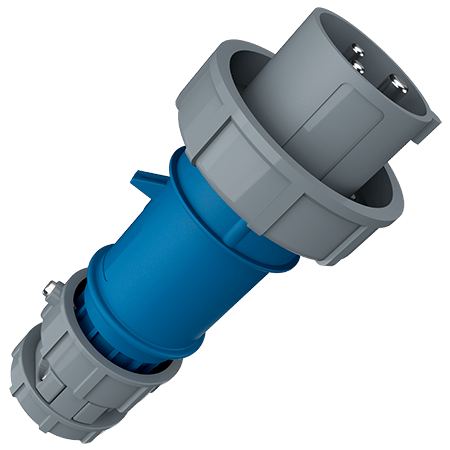

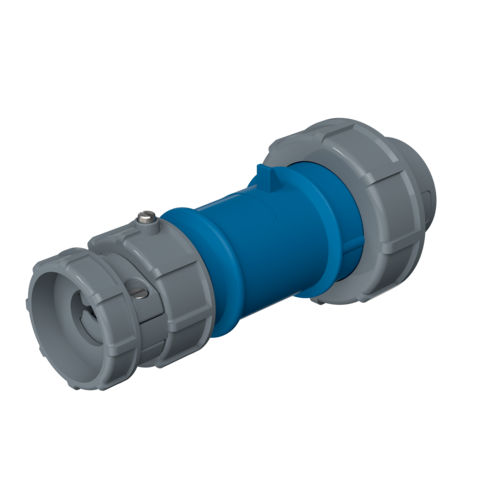

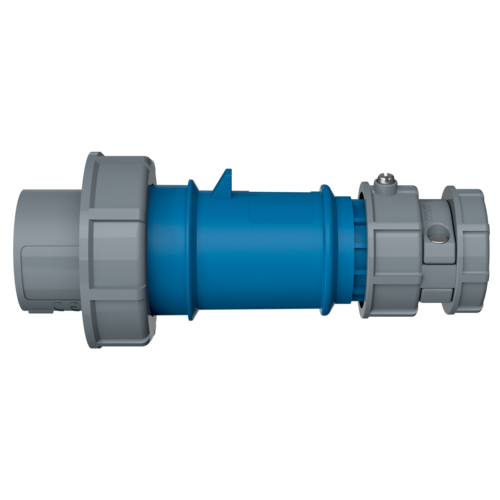

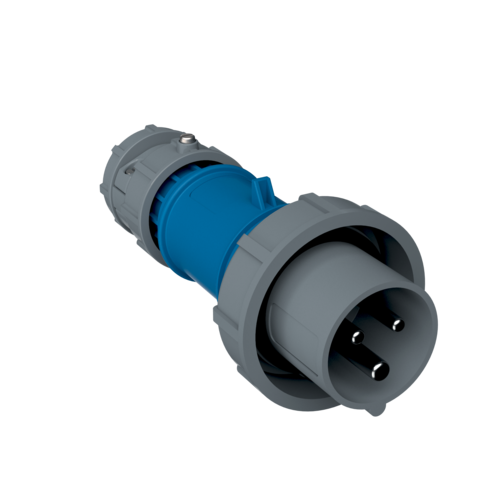

MENNEKES Plug PowerTOP 3830
MENNEKES Plug PowerTOP 3830 images3d

Plug PowerTOP 3830

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • Part no.3830
  • EAN4015394099581
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP 3830

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 307 g
Certifications VDE

Directives

Plug PowerTOP 3830

Appropriate accessories

Plug PowerTOP 3830

MENNEKES Protective cover 40841

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets 32 A, 3 p + 4 p

MENNEKES Hanging clip 15453000

Hanging clip

Part no. 15453000

for PowerTOP plugs and connectors

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
