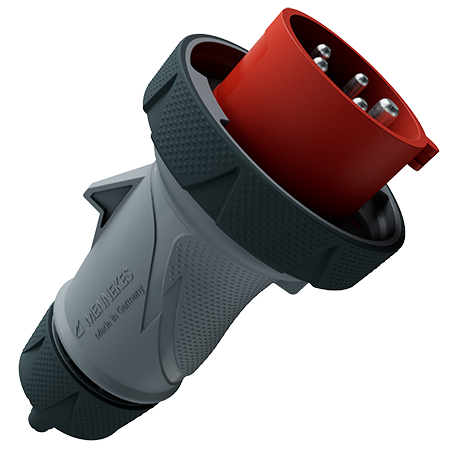

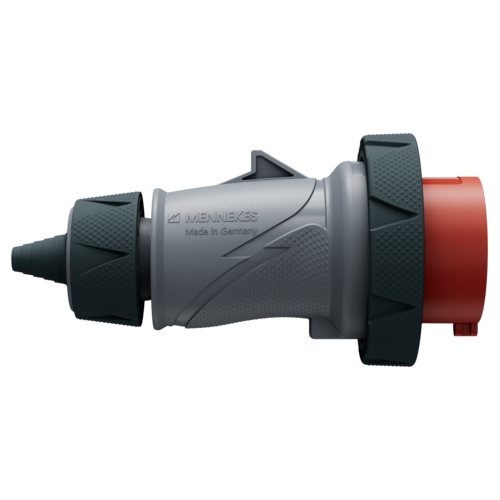

MENNEKES Plug PowerTOP Xtra G 13343
MENNEKES Plug PowerTOP Xtra G 13343 images3d

Plug PowerTOP Xtra G 13343

Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • highly heat resistant contact carrier
  • nickel plated contacts
  • rubberised cable gland with sealing
  • with protective grommet to prevent dirt from accumulating
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13343
  • EAN4015394310235
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra G 13343

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67 / IP69
Weight 282 g

Directives

Plug PowerTOP Xtra G 13343
