MENNEKES Plug PowerTOP Xtra R 13214
MENNEKES Plug PowerTOP Xtra R 13214 images3d

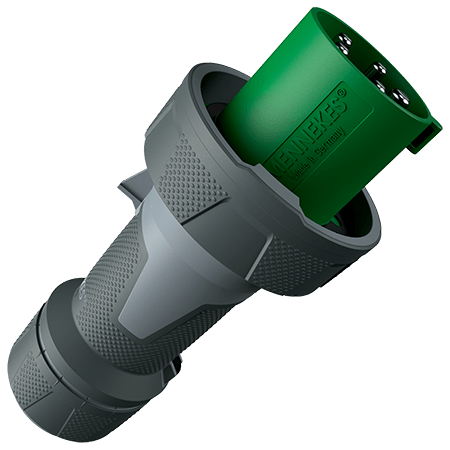

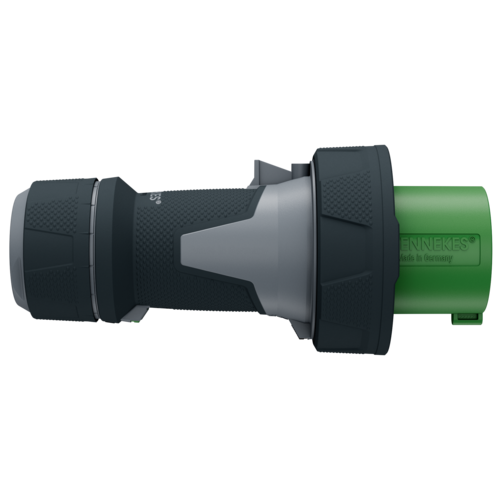

Plug PowerTOP Xtra R 13214

Poles
Voltage
Clock position
  • screw terminals
  • rubberised grip area
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.13214
  • EAN4015394238645
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra R 13214

Ampere 63 A
Poles 5 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 886 g
Certifications CQC

Directives

Plug PowerTOP Xtra R 13214

Appropriate accessories

Plug PowerTOP Xtra R 13214

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p

Frequently asked questions about the product

What does the suffix “R” stand for following the article description of the PowerTOP Xtra series?

Our 5-pin, 16A PowerTOP Xtra plugs and sockets are available as a PowerTOP Xtra R variant. The R stands for robust, high-heat resistant contact carriers and nickel-plated plug and connector contacts. The plug and socket device is therefore especially protected against high humidity and aggressive substances.
