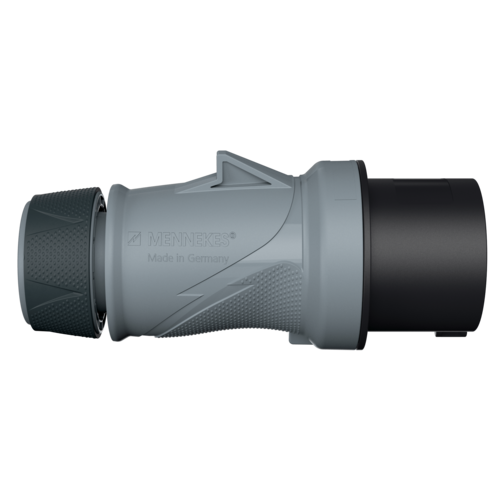

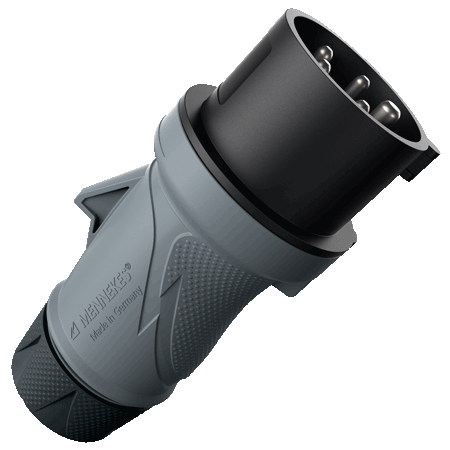

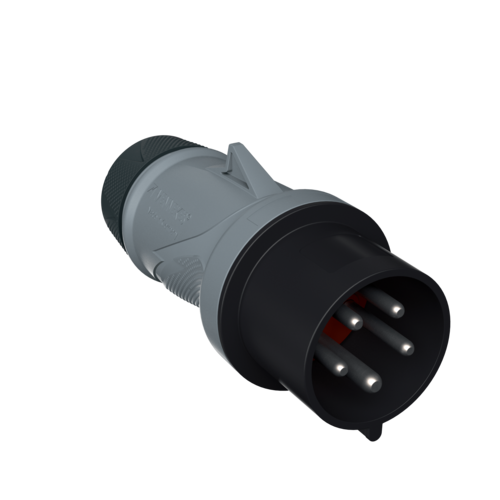

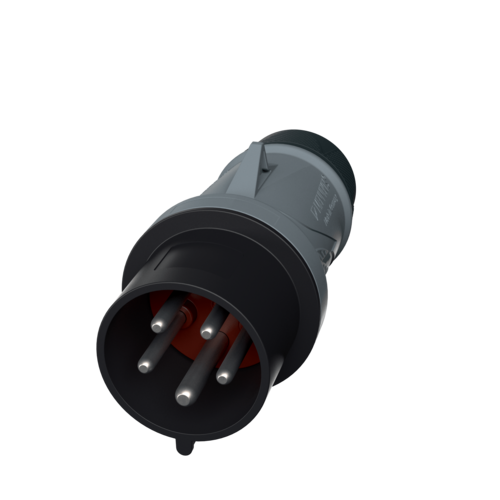

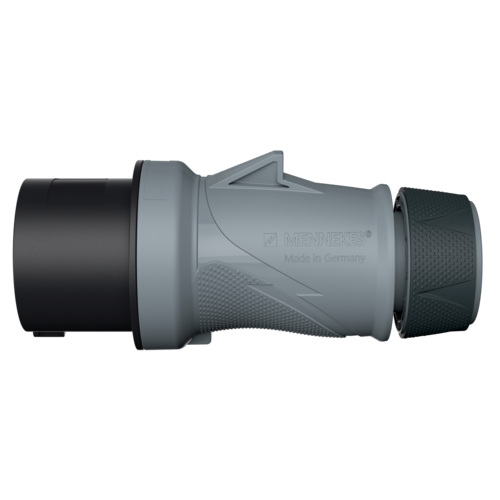

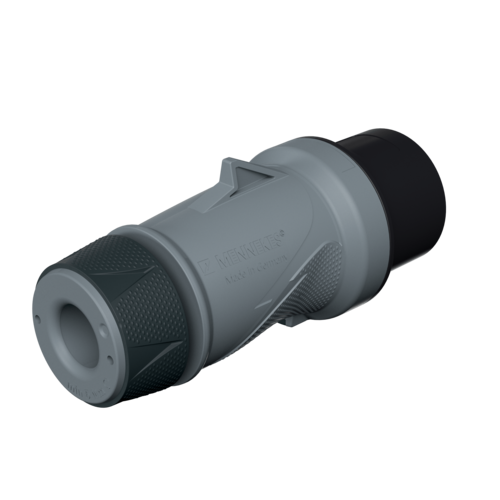

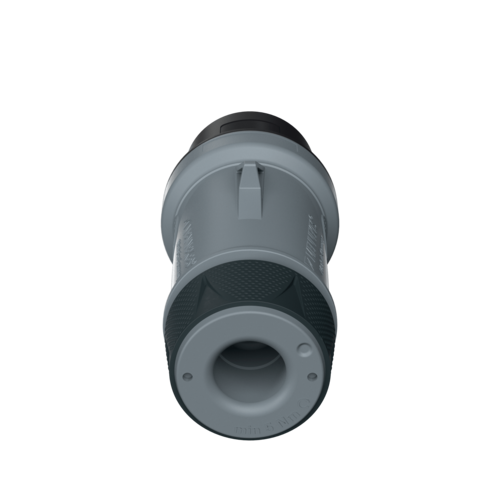

Plug PowerTOP Xtra R with ErgoCONTACT 13599
Regardless of configuration and application area – the PowerTOP Xtra plugs have compelling, tried and tested features: Ergonomic design, ease of installation, safe and straightforward connection. PowerTOP Xtra devices meet the requirements for the IP 54 protection class, meaning they are both splashproof and dustproof.
Voltage
Clock position
- screw connection technology ErgoCONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip areas
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Plug PowerTOP Xtra R with ErgoCONTACT 13599
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | 600-690 V |
| Clock position | 5 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT |
| Contact |
nickel plated contacts highly heat resistant contact carrier |
| Protection type | IP54 |
| Weight | 195 g |
| Certifications |
VDE CQC |
Videos
Plug PowerTOP Xtra R with ErgoCONTACT 13599
Frequently asked questions about the product
What is ErgoCONTACT?
ErgoCONTACT refers to a specially enhanced, innovative, easy-to-use screw-contact technology that is available for plugs and sockets. It enables easy, secure, and time-saving installation. To this end, the screwdriver is inserted from the top instead of the side to apply pressure directly against the handle. The screw is additionally guided by a collar. This prevents it from slipping and minimizes the risk of injuries. Each contact has only one screw: a captive combination head screw that is integrated in the guide collar and can be turned using either a Phillips or flathead screwdriver. More information can be found here.
What does the suffix “R” stand for following the article description of the PowerTOP Xtra series?
Our 5-pin, 16A PowerTOP Xtra plugs and sockets are available as a PowerTOP Xtra R variant. The R stands for robust, high-heat resistant contact carriers and nickel-plated plug and connector contacts. The plug and socket device is therefore especially protected against high humidity and aggressive substances.
To the questions and answers
