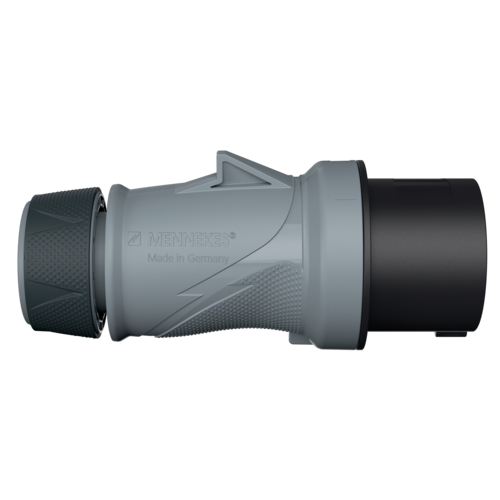

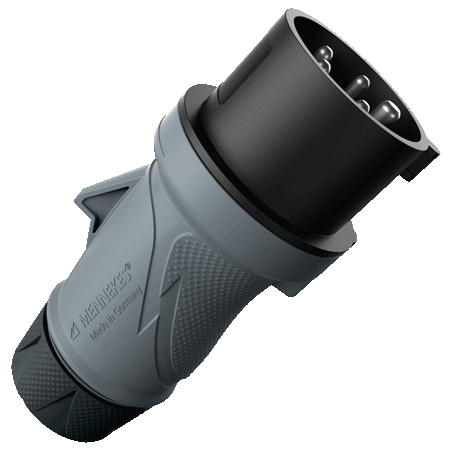

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13610
MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13610 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra R with ErgoCONTACT 13610

Across all versions and applications, PowerTOP Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • ergonomic enclosure design with nubbed grip areas
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slid
  • area for self-adhesive labels
  • Part no.13610
  • EAN4015394296621
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra R with ErgoCONTACT 13610

Ampere 32 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP54
Weight 367 g
Certifications VDE

Videos

Plug PowerTOP Xtra R with ErgoCONTACT 13610

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Plug PowerTOP Xtra R with ErgoCONTACT 13610

Frequently asked questions about the product

What is ErgoCONTACT?

ErgoCONTACT refers to a specially enhanced, innovative, easy-to-use screw-contact technology that is available for plugs and sockets. It enables easy, secure, and time-saving installation. To this end, the screwdriver is inserted from the top instead of the side to apply pressure directly against the handle. The screw is additionally guided by a collar. This prevents it from slipping and minimizes the risk of injuries. Each contact has only one screw: a captive combination head screw that is integrated in the guide collar and can be turned using either a Phillips or flathead screwdriver. More information can be found here.

What does the suffix “R” stand for following the article description of the PowerTOP Xtra series?

Our 5-pin, 16A PowerTOP Xtra plugs and sockets are available as a PowerTOP Xtra R variant. The R stands for robust, high-heat resistant contact carriers and nickel-plated plug and connector contacts. The plug and socket device is therefore especially protected against high humidity and aggressive substances.
