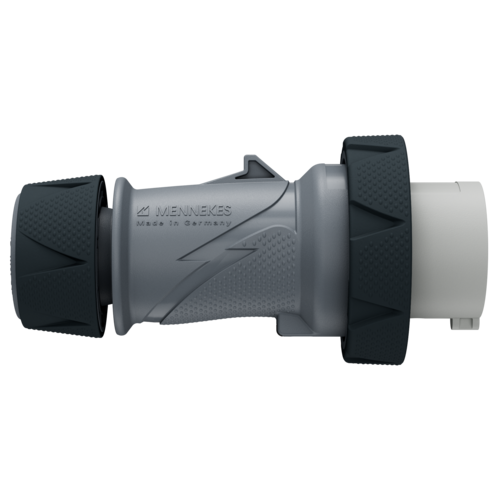

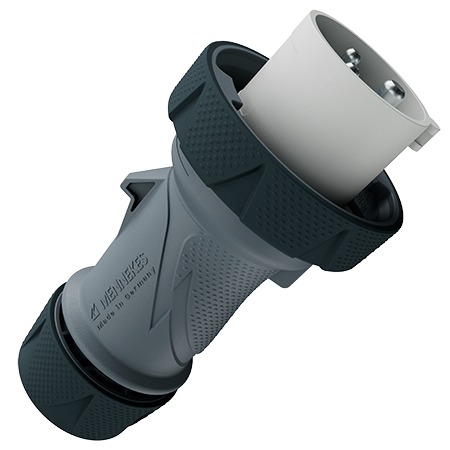

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13676
MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13676 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra R with ErgoCONTACT 13676

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • ergonomic enclosure design with nubbed grip areas
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high
  • pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13676
  • EAN4015394308966
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra R with ErgoCONTACT 13676

Ampere 32 A
Poles 3 p
Voltage 50-250 V
Clock position 3 h
Hertz (DC)
Connection technology Screw terminals, ErgoCONTACT
Contact nickel plated contacts
Protection type IP67 / IP69
Weight 360 g

Videos

Plug PowerTOP Xtra R with ErgoCONTACT 13676

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra R with ErgoCONTACT 13676

Appropriate accessories

Plug PowerTOP Xtra R with ErgoCONTACT 13676

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A
