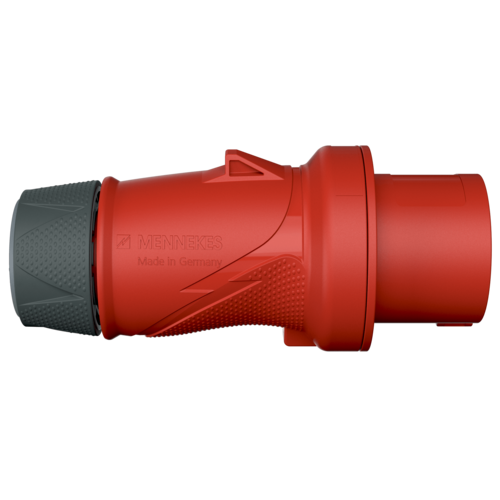

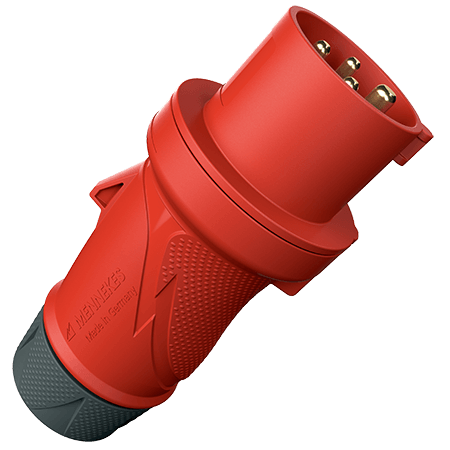

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13516
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13516 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra with ErgoCONTACT 13516

Across all versions and applications, PowerTOP® Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP® Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra plug replaces the ProTOP plug 164
  • Part no.13516
  • EAN4015394296737
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13516

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP54
Weight 344 g
Certifications VDE
CQC

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13516

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13516

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13516 with IP54

MENNEKES Panel mounted receptacle 1496

Panel mounted receptacle

Part no. 1496

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle DUOi 5613406G

Wall mounted receptacle DUOi

Part no. 5613406G

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14516

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14516

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT
