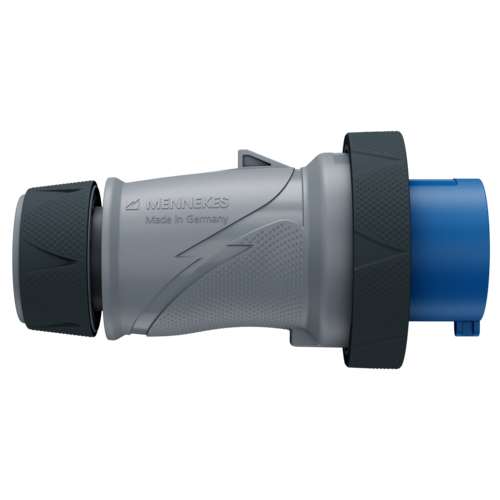

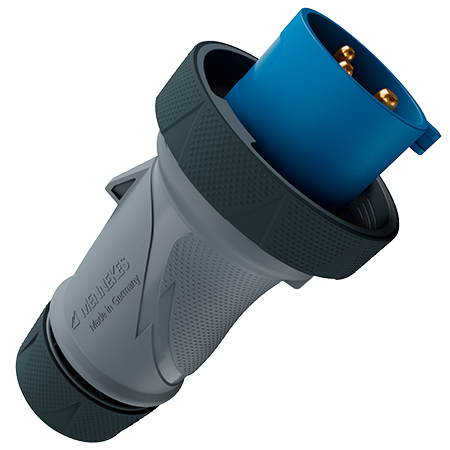

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13625
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13625 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra with ErgoCONTACT 13625

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
Ampere 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13625
  • EAN4015394302445
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13625

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP67
Weight 360 g

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13625

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13625

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13625 with IP67

MENNEKES Wall mounted receptacle DUOi 5614306N

Wall mounted receptacle DUOi

Part no. 5614306N

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle DUOi 5614306G

Wall mounted receptacle DUOi

Part no. 5614306G

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle DUOi R 5814306T

Wall mounted receptacle DUOi R

Part no. 5814306T

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle 5604306G

Wall mounted receptacle

Part no. 5604306G

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals

Appropriate accessories

Plug PowerTOP Xtra with ErgoCONTACT 13625

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A
