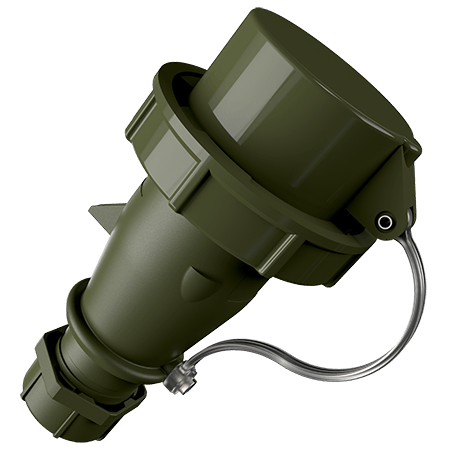

MENNEKES Plug TM 24670

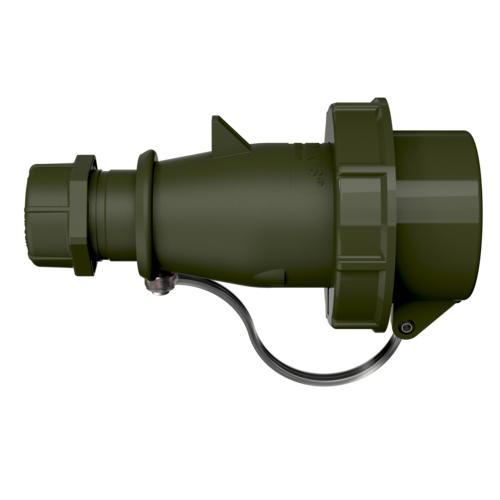

MENNEKES Plug TM 24670 images3d

Plug TM 24670

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form CP)
  • Part no.24670
  • EAN4015394260660
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug TM 24670

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 261 g
Certifications VDE

Datasheets & Downloads

Plug TM 24670

Product infoPlug TM 24670 PDF, 142 KB
Manufacturer‘s declarationPlug TM 24670 PDF, 43 KB
CAD data STPPlug TM 24670 ZIP, 1 MB
CAD data 3D DWGPlug TM 24670 ZIP, 2 MB
Mounting instructionsPlug TM 24670 PDF, 2 MB
Dimensional drawing portraitPlug TM 24670 PNG, 72 KB
Dimensional drawing landscape formatPlug TM 24670 PNG, 72 KB

Directives

Plug TM 24670

REACh
RoHS

Appropriate accessories

Plug TM 24670

MENNEKES Protective cover TM 40927

Protective cover TM

Part no. 40927

for watertight plugs and inlets, (form G)
