Show all Inlets / Show all Wall mounted inlet

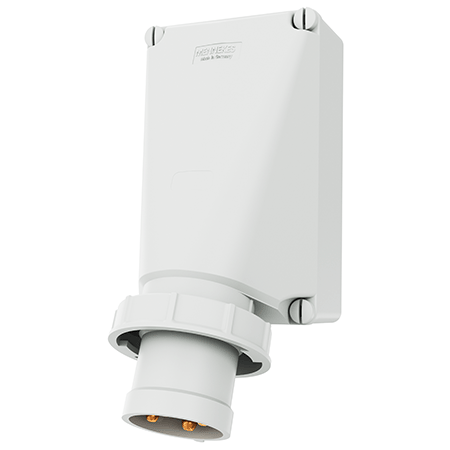

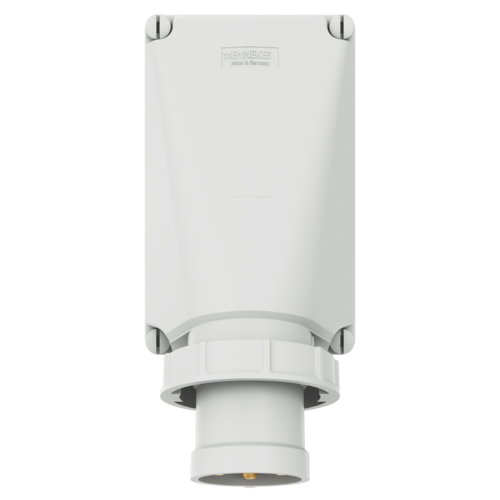

MENNEKES Wall mounted inlet 365
MENNEKES Wall mounted inlet 365 images3d

Wall mounted inlet 365

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • Part no.365
  • EAN4015394002673
  • Std. Pack. 1

Technical specifications

Wall mounted inlet 365

Ampere 125 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 2061 g
Certifications CQC

Datasheets & Downloads

Wall mounted inlet 365

Product infoWall mounted inlet 365 PDF, 119 KB
Dimensional drawing portraitWall mounted inlet 365 PNG, 60 KB
Dimensional drawing landscape formatWall mounted inlet 365 PNG, 60 KB

Directives

Wall mounted inlet 365

REACh
RoHS

Appropriate accessories

Wall mounted inlet 365

MENNEKES Protective cover 40788

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets 125 A, 3 p - 5 p

more
