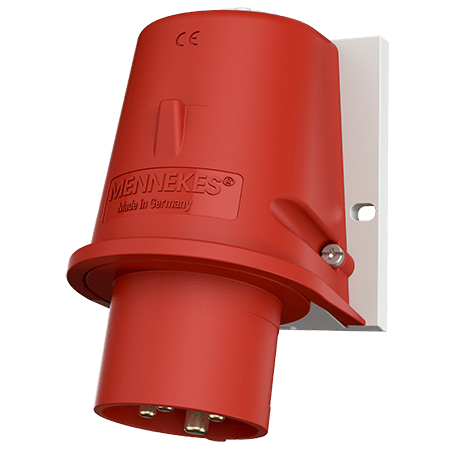

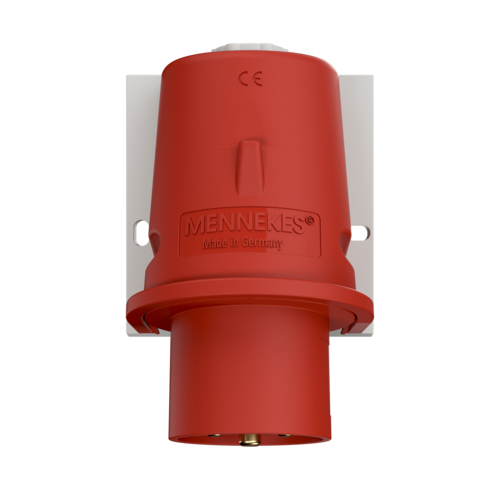

MENNEKES Wall mounted inlet 800
MENNEKES Wall mounted inlet 800 images3d

Wall mounted inlet 800

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for external fixing
  • for hinged lids for retrofitting see accessories
  • Part no.800
  • EAN4015394202400
  • Std. Pack. 10

Technical specifications

Wall mounted inlet 800

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 201 g
Certifications VDE

Datasheets & Downloads

Wall mounted inlet 800

Product infoWall mounted inlet 800 PDF, 151 KB
CAD data STPWall mounted inlet 800 ZIP, 899 KB
CAD data 3D DWGWall mounted inlet 800 ZIP, 2 MB
Dimensional drawing portraitWall mounted inlet 800 PNG, 85 KB
Dimensional drawing landscape formatWall mounted inlet 800 PNG, 86 KB

Directives

Wall mounted inlet 800

REACh
RoHS

Appropriate accessories

Wall mounted inlet 800

MENNEKES Hinged lid 41489

Hinged lid

Part no. 41489

suitable for wall mounted inlets and phase inverters Part no. 800, 801, 3517
