Show all Inlets / Show all Wall mounted inlet

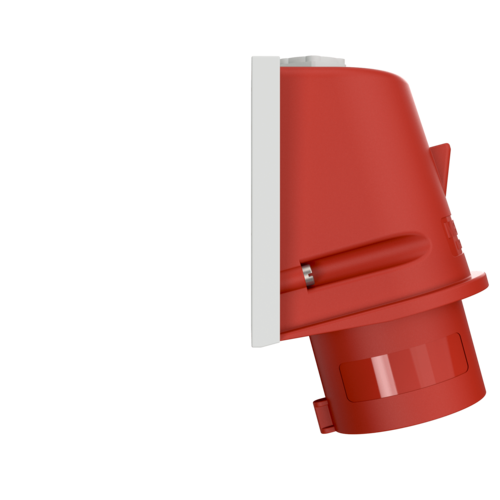

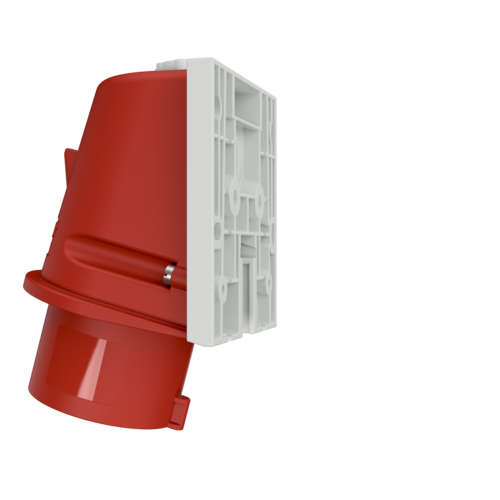

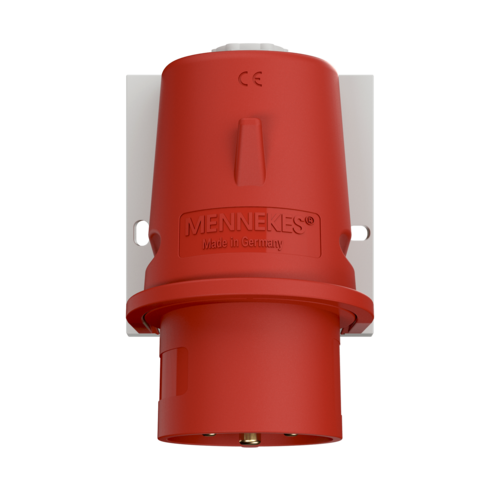

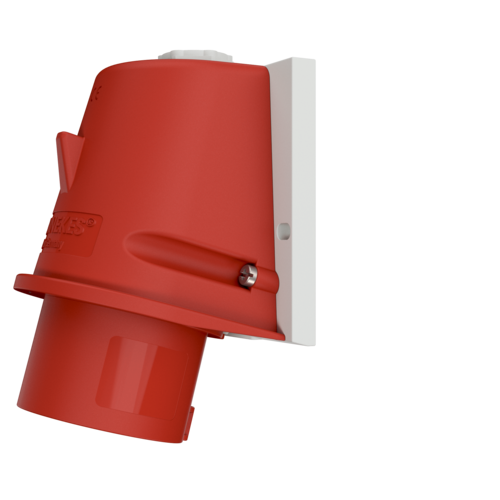

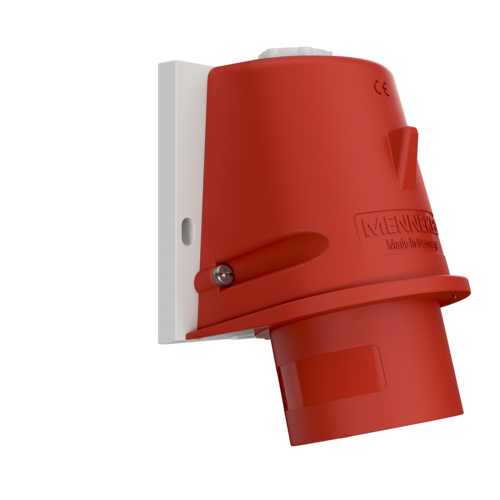

MENNEKES Wall mounted inlet 801
MENNEKES Wall mounted inlet 801 images3d

Wall mounted inlet 801

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for external fixing
  • Part no.801
  • EAN4015394202417
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 801

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 215 g
Certifications VDE

Datasheets & Downloads

Wall mounted inlet 801

Product infoWall mounted inlet 801 PDF, 152 KB
Manufacturer‘s declarationWall mounted inlet 801 PDF, 43 KB
CAD data STPWall mounted inlet 801 ZIP, 1 MB
CAD data 3D DWGWall mounted inlet 801 ZIP, 3 MB
Dimensional drawing portraitWall mounted inlet 801 PNG, 85 KB
Dimensional drawing landscape formatWall mounted inlet 801 PNG, 86 KB

Directives

Wall mounted inlet 801

REACh
RoHS

Appropriate accessories

Wall mounted inlet 801

MENNEKES Hinged lid 41489

Hinged lid

Part no. 41489

suitable for wall mounted inlets and phase inverters Part no. 800, 801, 3517
