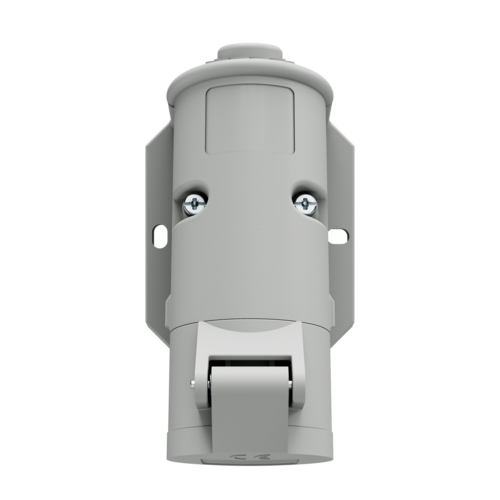

MENNEKES Wall mounted receptacle 1829
MENNEKES Wall mounted receptacle 1829 images3d

Wall mounted receptacle 1829

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1829
  • EAN4015394012627
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 1829

Ampere 16 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 189 g
Certifications EAC

Directives

Wall mounted receptacle 1829

Appropriate accessories

Wall mounted receptacle 1829

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
