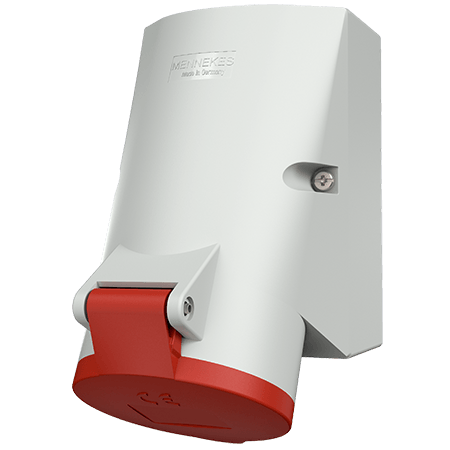

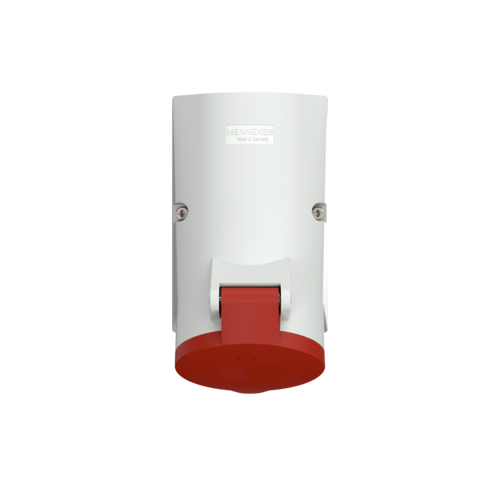

Wall mounted receptacle 20162A

Name: Wall mounted receptacle
Brand: MENNEKES
SKU: 20162A

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
highly heat resistant contact carrier
nickel plated contacts

internal fixing
enclosure base can be turned 180°
receptacles are designed for adding an auxiliary contact switch

Part no.20162A
EAN4015394038276
Std. Pack. 10

Technical specifications

Wall mounted receptacle 20162A

Ampere	32 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	highly heat resistant contact carrier nickel plated contacts
Protection type	IP44
Weight	424 g
Certifications	EAC

Datasheets & Downloads

Wall mounted receptacle 20162A

Product infoWall mounted receptacle 20162A PDF, 167 KB

CAD data STPWall mounted receptacle 20162A ZIP, 628 KB

CAD data 3D DWGWall mounted receptacle 20162A ZIP, 1 MB

Dimensional drawing portraitWall mounted receptacle 20162A PNG, 101 KB

Dimensional drawing landscape formatWall mounted receptacle 20162A PNG, 103 KB

Directives

Wall mounted receptacle 20162A

REACh

RoHS

Appropriate accessories

Wall mounted receptacle 20162A

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
