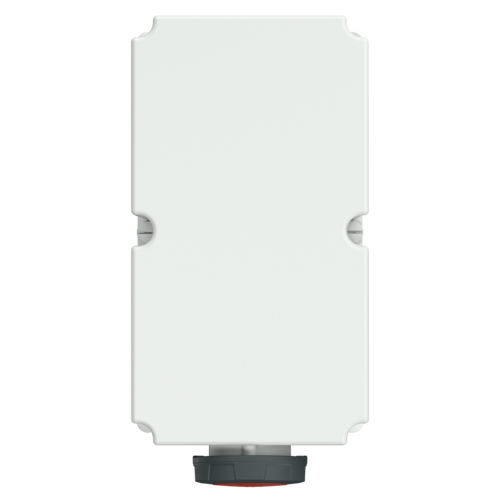

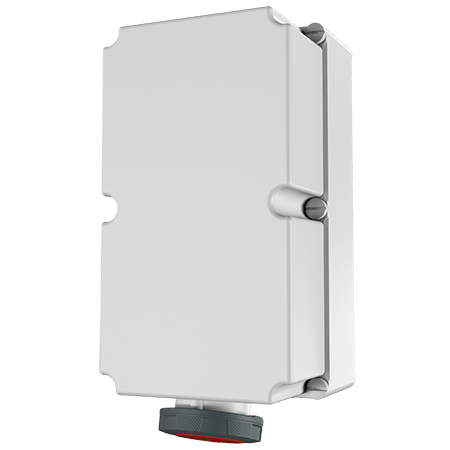

MENNEKES Wall mounted receptacle 2162A
MENNEKES Wall mounted receptacle 2162A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 2162A

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • with large space for accommodating wiring
  • products with pilot contact on request
  • Part no.2162A
  • EAN4015394013464
  • Std. Pack. 1
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted receptacle 2162A

Ampere 125 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
X-CONTACT
Protection type IP67
Weight 5000 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 2162A

Product infoWall mounted receptacle 2162A PDF, 123 KB
CAD data STPWall mounted receptacle 2162A ZIP, 2 MB
CAD data 3D DWGWall mounted receptacle 2162A ZIP, 8 MB
Dimensional drawing portraitWall mounted receptacle 2162A PNG, 44 KB
Dimensional drawing landscape formatWall mounted receptacle 2162A PNG, 44 KB

Videos

Wall mounted receptacle 2162A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 2162A

REACh
RoHS
