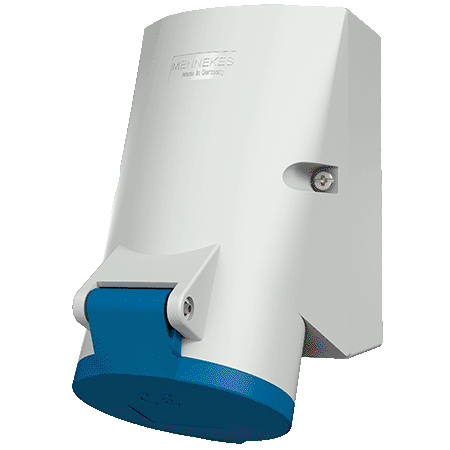

MENNEKES Wall mounted receptacle 23443A

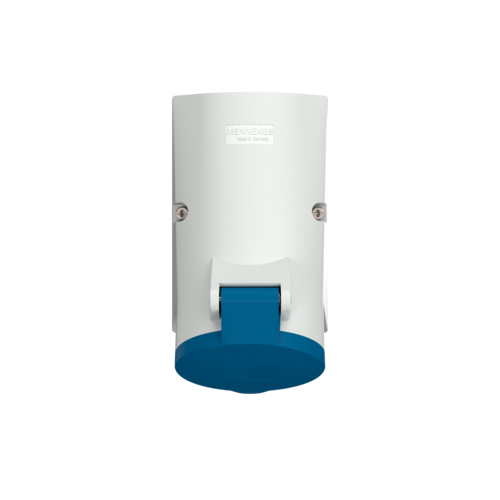

MENNEKES Wall mounted receptacle 23443A images3d

Wall mounted receptacle 23443A

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • internal fixing
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.23443A
  • EAN4015394156093
  • Std. Pack. 10

Technical specifications

Wall mounted receptacle 23443A

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 303 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 23443A

Product infoWall mounted receptacle 23443A PDF, 139 KB
Dimensional drawing portraitWall mounted receptacle 23443A PNG, 101 KB
Dimensional drawing landscape formatWall mounted receptacle 23443A PNG, 103 KB

Directives

Wall mounted receptacle 23443A

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 23443A

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
