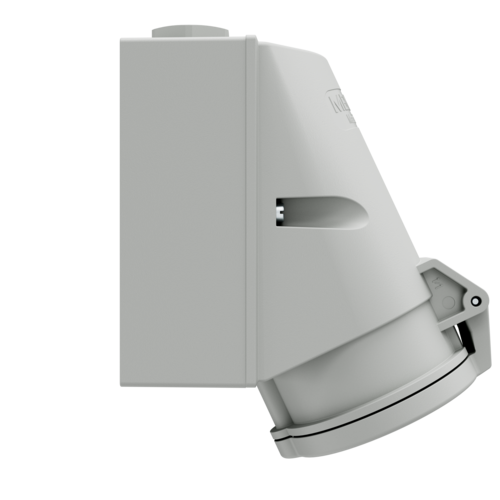

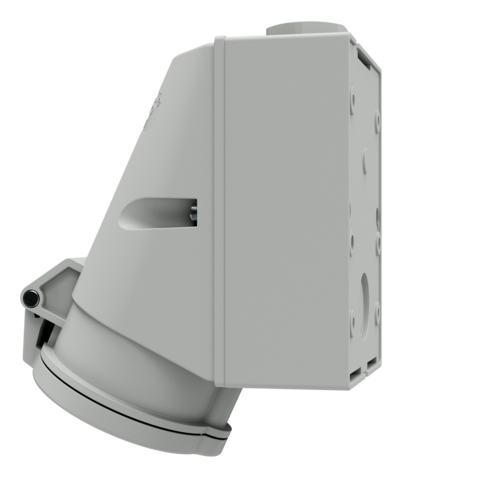

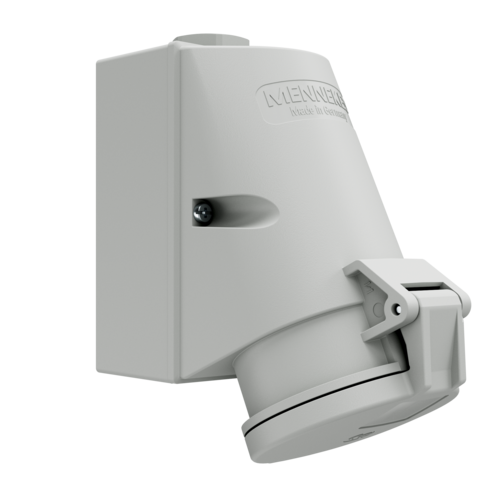

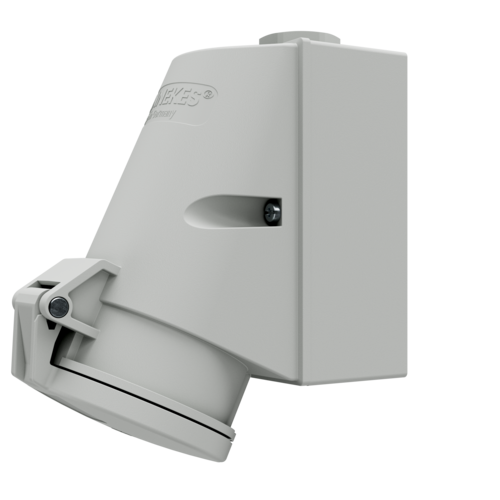

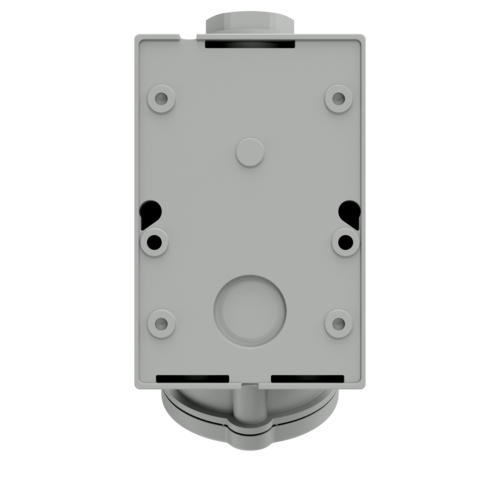

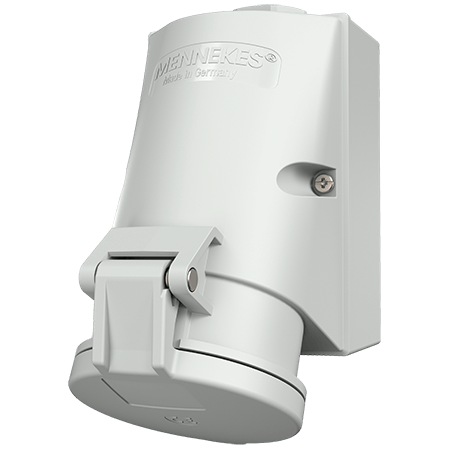

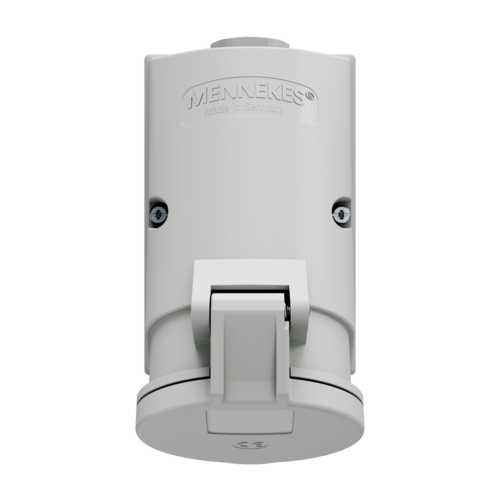

MENNEKES Wall mounted receptacle 2983A
MENNEKES Wall mounted receptacle 2983A images3d

Wall mounted receptacle 2983A

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2983A
  • EAN4015394017226
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 2983A

Ampere 32 A
Poles 4 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 360 g
Certifications VDE

Directives

Wall mounted receptacle 2983A

Appropriate accessories

Wall mounted receptacle 2983A

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Frequently asked questions about the product

What do you need 1h plugs and sockets for?

Contrary to other clock positions, this one is not standardized and therefore available for special plug and socket applications. More information can be found here

To the questions and answers
