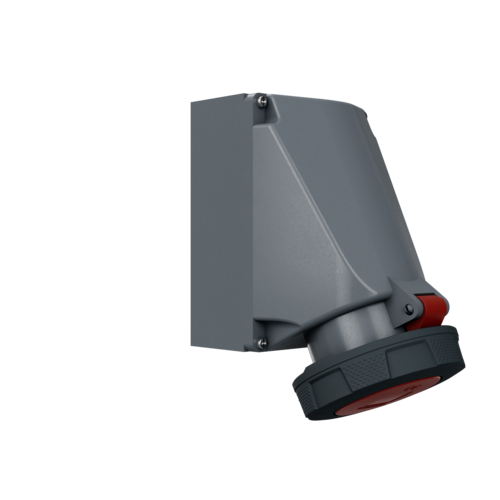

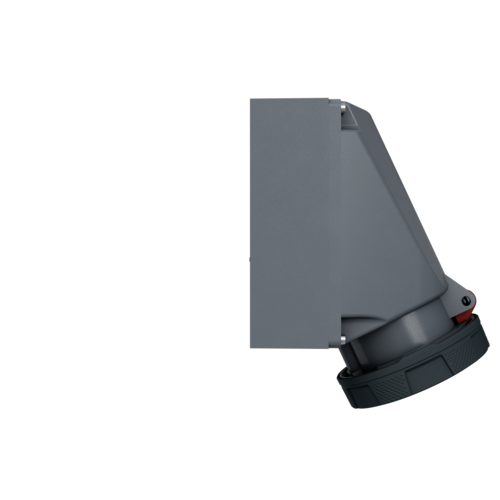

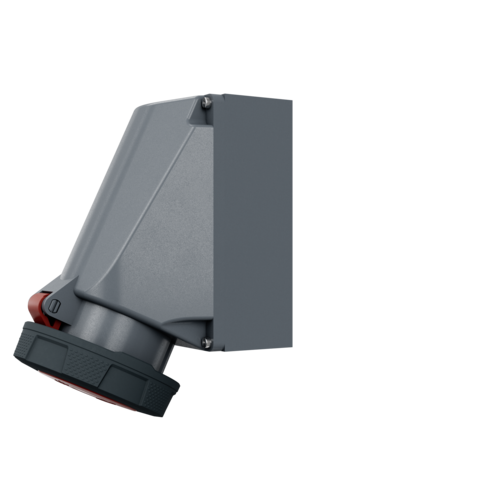

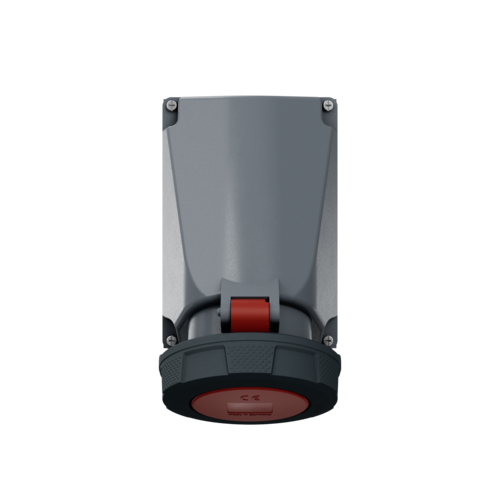

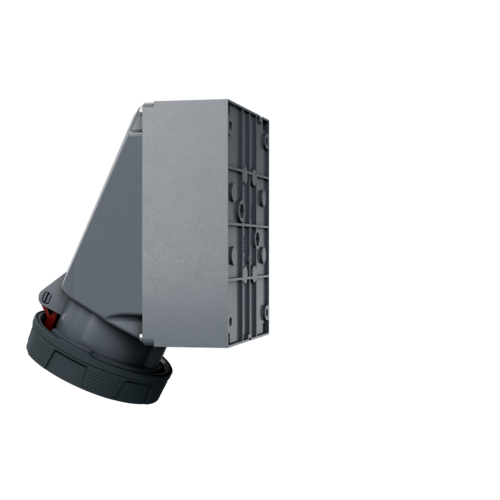

Wall mounted receptacle 3774
Ampere
63 A
Poles
Voltage
Clock position
- screw terminals
- X-CONTACT
- highly resistant to chemicals
- highly heat resistant contact carrier
- nickel plated contacts
- internal fixing

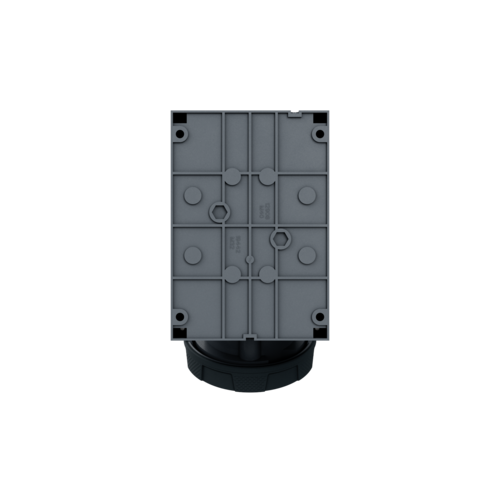

- enclosure base can be turned 180°
- with 6 blind holes for mounting special terminals if required
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle 3774
| Ampere | 63 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts X-CONTACT |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 1066 g |
| Certifications | EAC |
