Show all Wall mounted receptacles fused, switched and interlocked / Show all Wall mounted receptacle

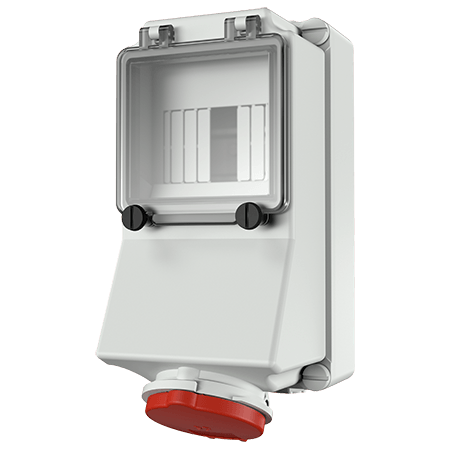

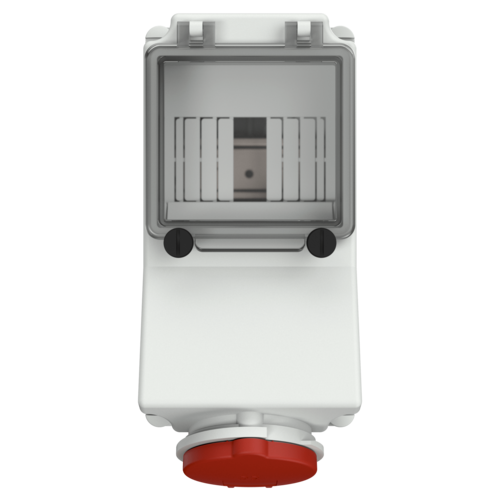

MENNEKES Wall mounted receptacle 5495
MENNEKES Wall mounted receptacle 5495 images3d

Wall mounted receptacle 5495

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals with DIN rail
  • optional fitting of Neozed, Diazed, circuit-breakers and RCD´s
  • Part no.5495
  • EAN4015394026990
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5495

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 926 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 5495

Product infoWall mounted receptacle 5495 PDF, 181 KB
Manufacturer‘s declarationWall mounted receptacle 5495 PDF, 38 KB
CAD data STPWall mounted receptacle 5495 ZIP, 883 KB
CAD data 3D DWGWall mounted receptacle 5495 ZIP, 2 MB
Dimensional drawing portraitWall mounted receptacle 5495 PNG, 124 KB
Dimensional drawing landscape formatWall mounted receptacle 5495 PNG, 125 KB

Directives

Wall mounted receptacle 5495

REACh
RoHS
