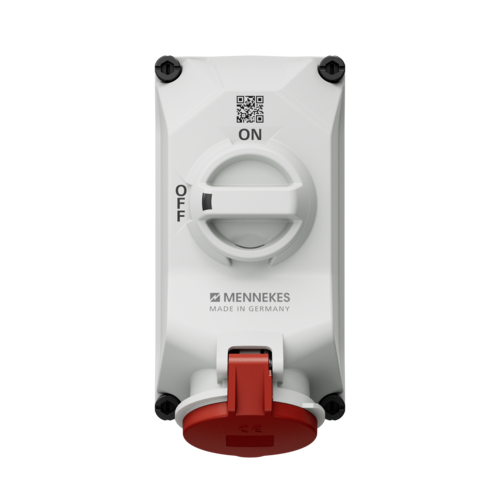

MENNEKES Wall mounted receptacle 5603506H
MENNEKES Wall mounted receptacle 5603506H images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 5603506H

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • 3 pole switch with auxiliary contact switch 1 NC and 1 NO
  • receptacles can be padlocked
  • Part no.5603506H
  • EAN4015394298601
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted receptacle 5603506H

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1423 g

Datasheets & Downloads

Wall mounted receptacle 5603506H

Product infoWall mounted receptacle 5603506H PDF, 1 MB
CAD data STPWall mounted receptacle 5603506H ZIP, 3 MB
CAD data 3D DWGWall mounted receptacle 5603506H ZIP, 8 MB
Mounting instructionsWall mounted receptacle 5603506H PDF, 4 MB
Dimensional drawing portraitWall mounted receptacle 5603506H PNG, 294 KB
Dimensional drawing landscape formatWall mounted receptacle 5603506H PNG, 310 KB

Videos

Wall mounted receptacle 5603506H

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted receptacle 5603506H

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 5603506H

MENNEKES Cable gland 990612

Cable gland

Part no. 990612

M 32 - clamping/sealing range 13-21 mm, IP67, deep black RAL 9005, individual packed

more
MENNEKES Cable gland 990613

Cable gland

Part no. 990613

M 25 - clamping/sealing range 9-17 mm, IP67, deep blackRAL 9005, with seal, individual packed
