Show all Low voltages / Show all Wall mounted receptacle

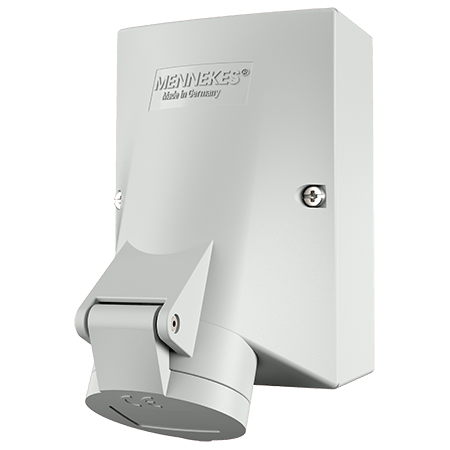

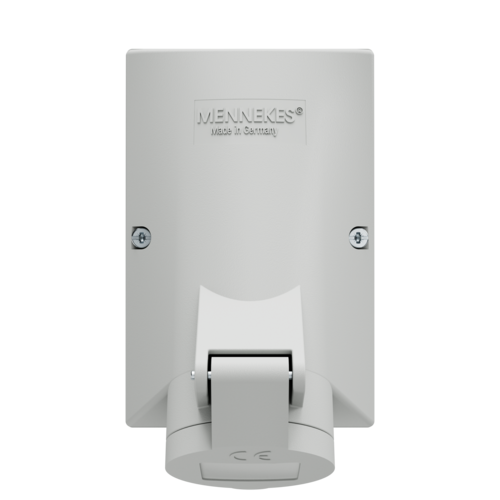

MENNEKES Wall mounted receptacle 598
MENNEKES Wall mounted receptacle 598 images3d

Wall mounted receptacle 598

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at bottom
  • lower part of enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.598
  • EAN4015394004417
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 598

Ampere 32 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 278 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 598

Product infoWall mounted receptacle 598 PDF, 176 KB
Dimensional drawing portraitWall mounted receptacle 598 PNG, 100 KB
Dimensional drawing landscape formatWall mounted receptacle 598 PNG, 100 KB

Directives

Wall mounted receptacle 598

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 598

MENNEKES Wall mounted receptacle 734

Wall mounted receptacle

Part no. 734

with highly heat resistant contact carrier, nickel plated contacts, internal fixing, one cable entry at the top, two blind entries (can be cut out) at the bottom, enclosure base can be turned 180°
