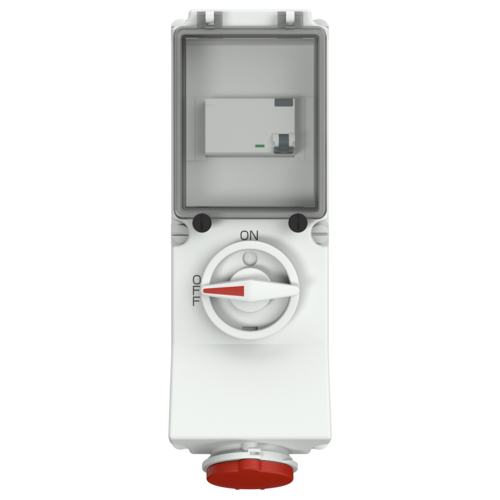

MENNEKES Wall mounted receptacle 7318
MENNEKES Wall mounted receptacle 7318 images3d

Wall mounted receptacle 7318

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • RCD (0.03A)
  • other leakage current ratings on request
  • receptacles can be padlocked
  • Part no.7318
  • EAN4015394128595
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7318

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 2160 g
Certifications CQC

Directives

Wall mounted receptacle 7318

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
