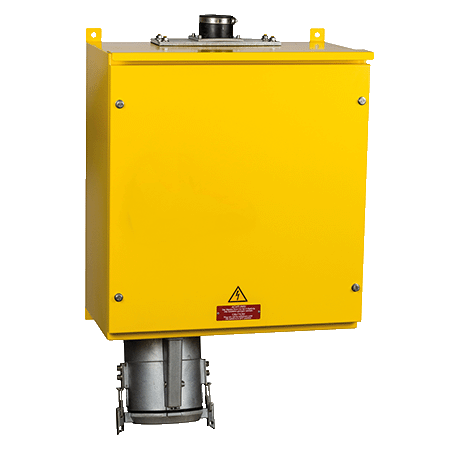

MENNEKES Wall mounted receptacle 75441

Wall mounted receptacle 75441

Poles
Voltage
Clock position
  • Screw terminals
  • electrical interlock with contactor
  • cable entry bushing for cables of 20 mm up to 70 mm at top and blind flange at bottom
  • enclosure made of sheet steel, painted in RAL 1021
  • external fixing
  • seawater resistant products are available on request
  • Part no.75441
  • EAN4015394152538
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 75441

Ampere 250 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP55
Weight 75000 g
Certifications EAC

Directives

Wall mounted receptacle 75441
