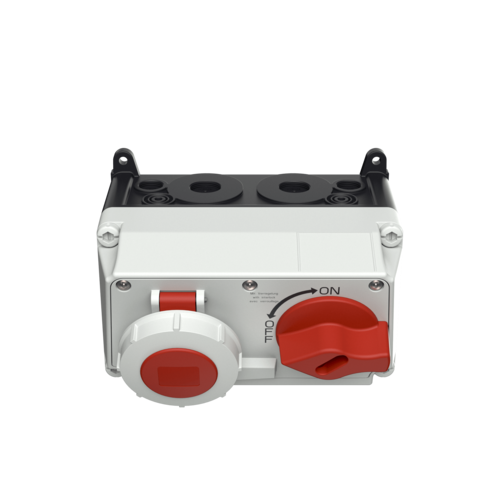

MENNEKES Wall mounted receptacle 7626
MENNEKES Wall mounted receptacle 7626 images3d

Wall mounted receptacle 7626

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7626
  • EAN4015394231714
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7626

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 1360 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 7626

Product infoWall mounted receptacle 7626 PDF, 119 KB
Manufacturer‘s declarationWall mounted receptacle 7626 PDF, 28 KB
CAD data STPWall mounted receptacle 7626 ZIP, 4 MB
CAD data 3D DWGWall mounted receptacle 7626 ZIP, 12 MB
Dimensional drawing portraitWall mounted receptacle 7626 PNG, 44 KB
Dimensional drawing landscape formatWall mounted receptacle 7626 PNG, 44 KB

Directives

Wall mounted receptacle 7626

REACh
RoHS

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
