MENNEKES Wall mounted receptacle 7634
MENNEKES Wall mounted receptacle 7634 images3d

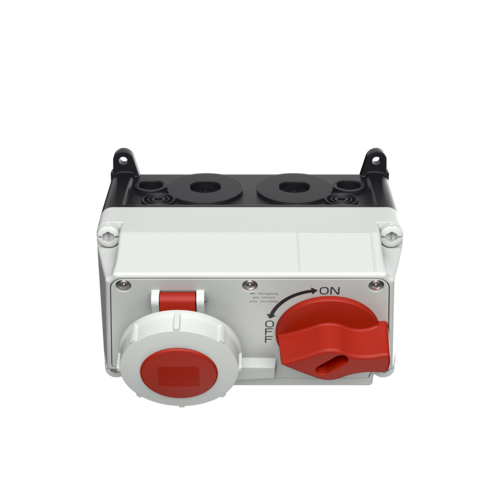

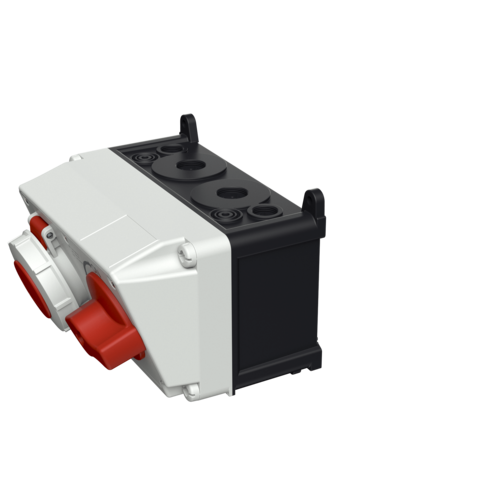

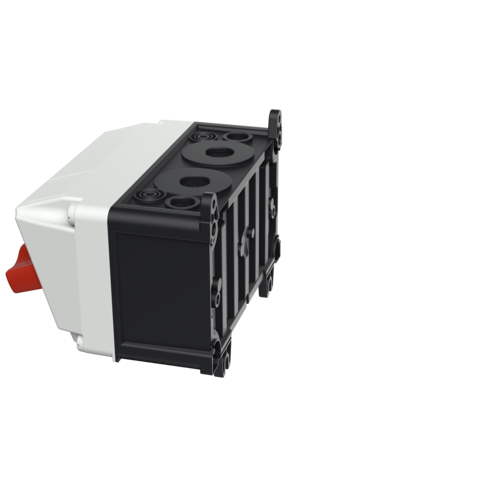

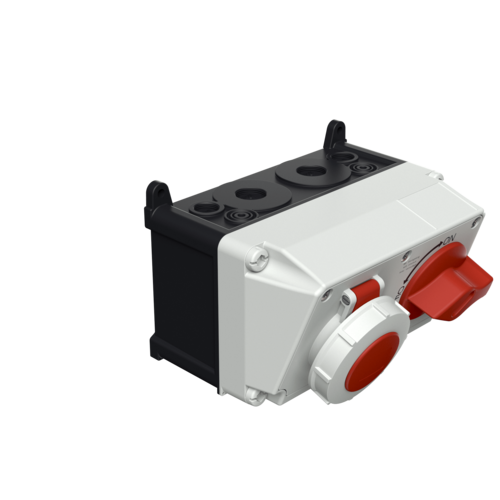

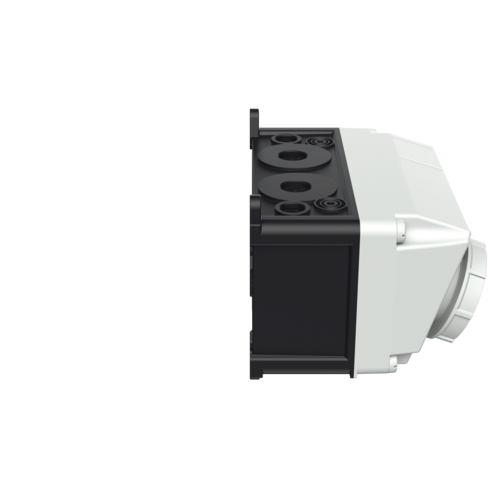

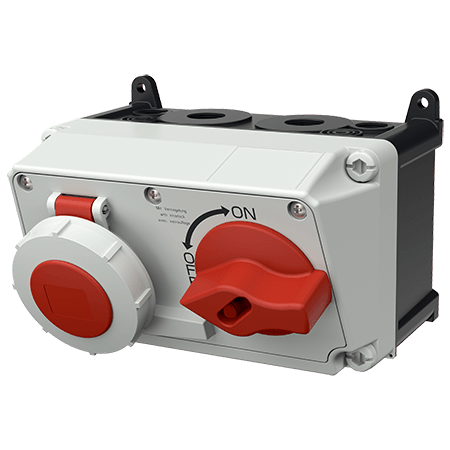

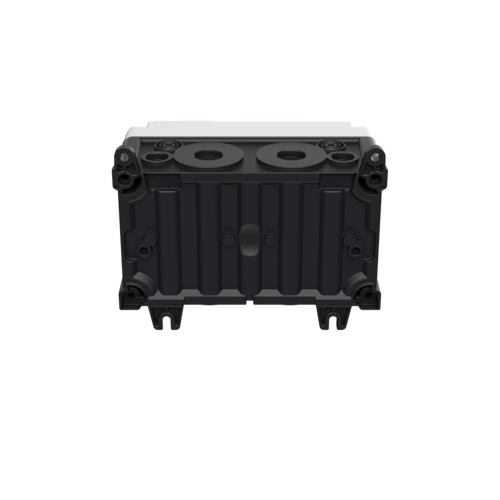

Wall mounted receptacle 7634

Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7634
  • EAN4015394231646
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7634

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 1622 g
Certifications EAC

Directives

Wall mounted receptacle 7634

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
