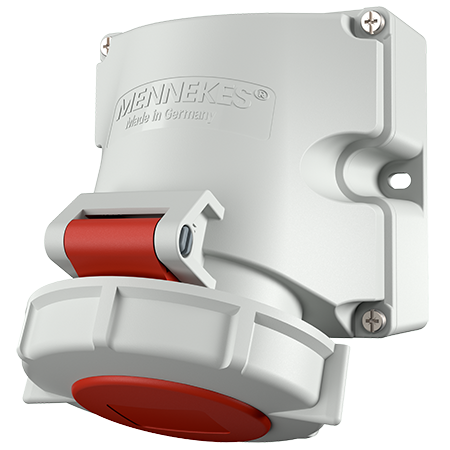

MENNEKES Wall mounted receptacle 9302

Wall mounted receptacle 9302

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9302
  • EAN4015394280361
  • Std. Pack. 5

Technical specifications

Wall mounted receptacle 9302

Ampere 16 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 343 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 9302

Product infoWall mounted receptacle 9302 PDF, 207 KB
Dimensional drawing portraitWall mounted receptacle 9302 PNG, 133 KB
Dimensional drawing landscape formatWall mounted receptacle 9302 PNG, 135 KB

Directives

Wall mounted receptacle 9302

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 9302

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
